1975 BMW R90S
Here's your chance to acquire quite possibly the finest restoration of a BMW R90S, expertly completed by Mark Francois. This meticulous build comes with an extensive restoration file, providing a comprehensive record of the restoration process and the care taken to bring this iconic motorcycle back to its pristine condition. Don't miss out on the opportunity to own a piece of two-wheeled history, restored to perfection.
The prices have continued to remain strong for high-level restorations like this one, with no expenses spared and ready to ride anywhere.
Frame # 4981030
Engine # 4981030
Complete restoration file documenting all parts of the restoration
Original tool kit
The bike…

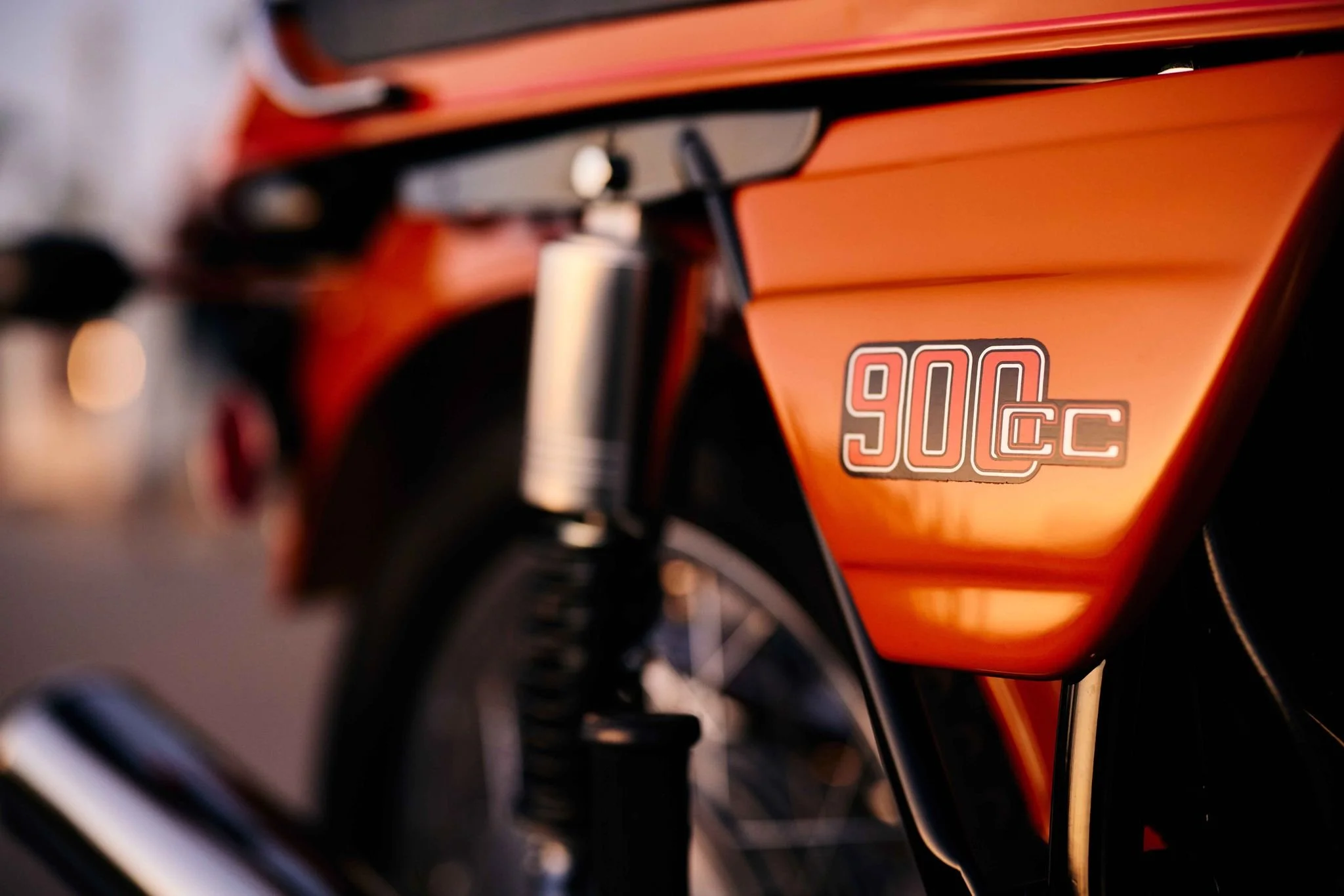

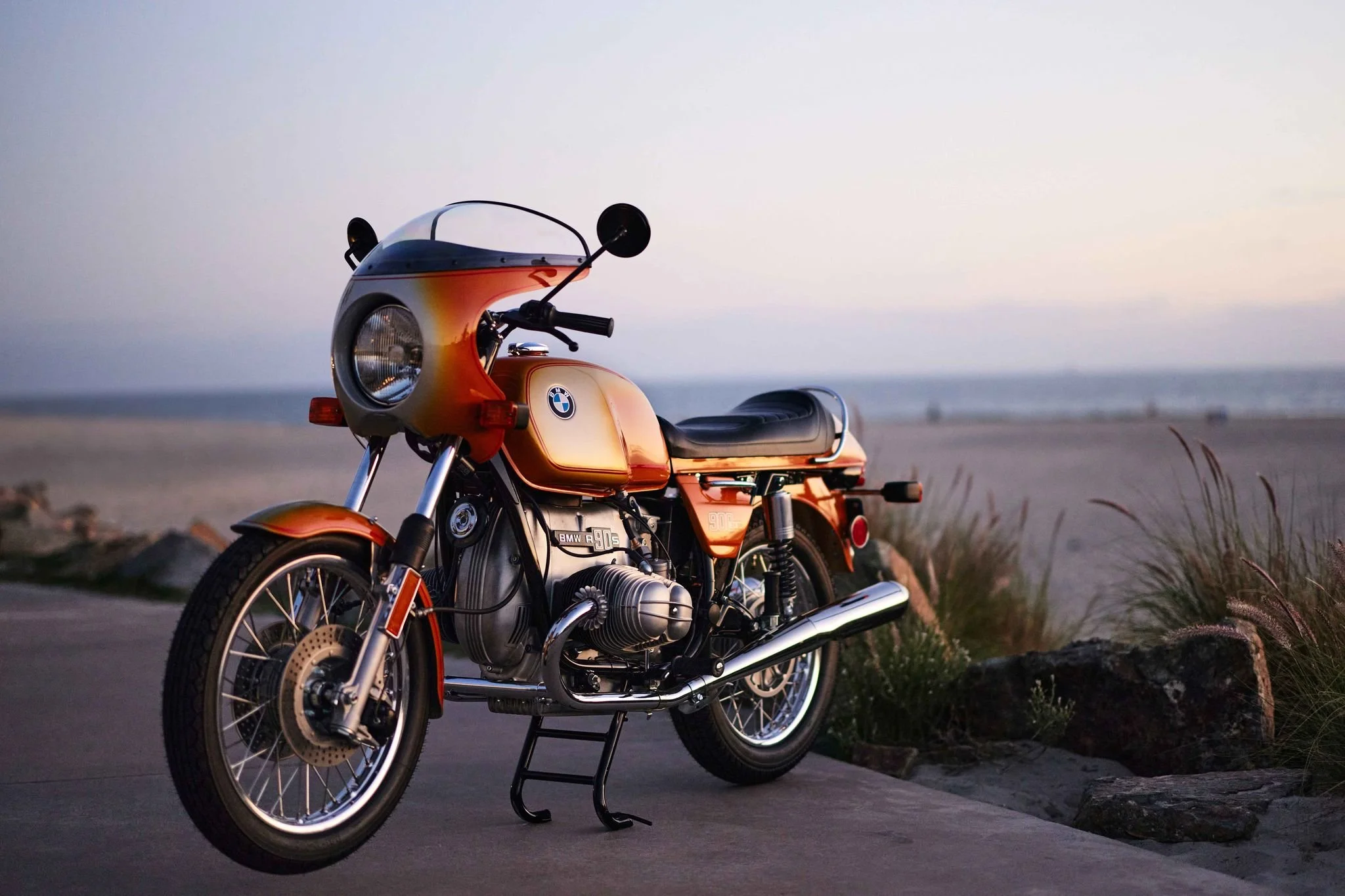

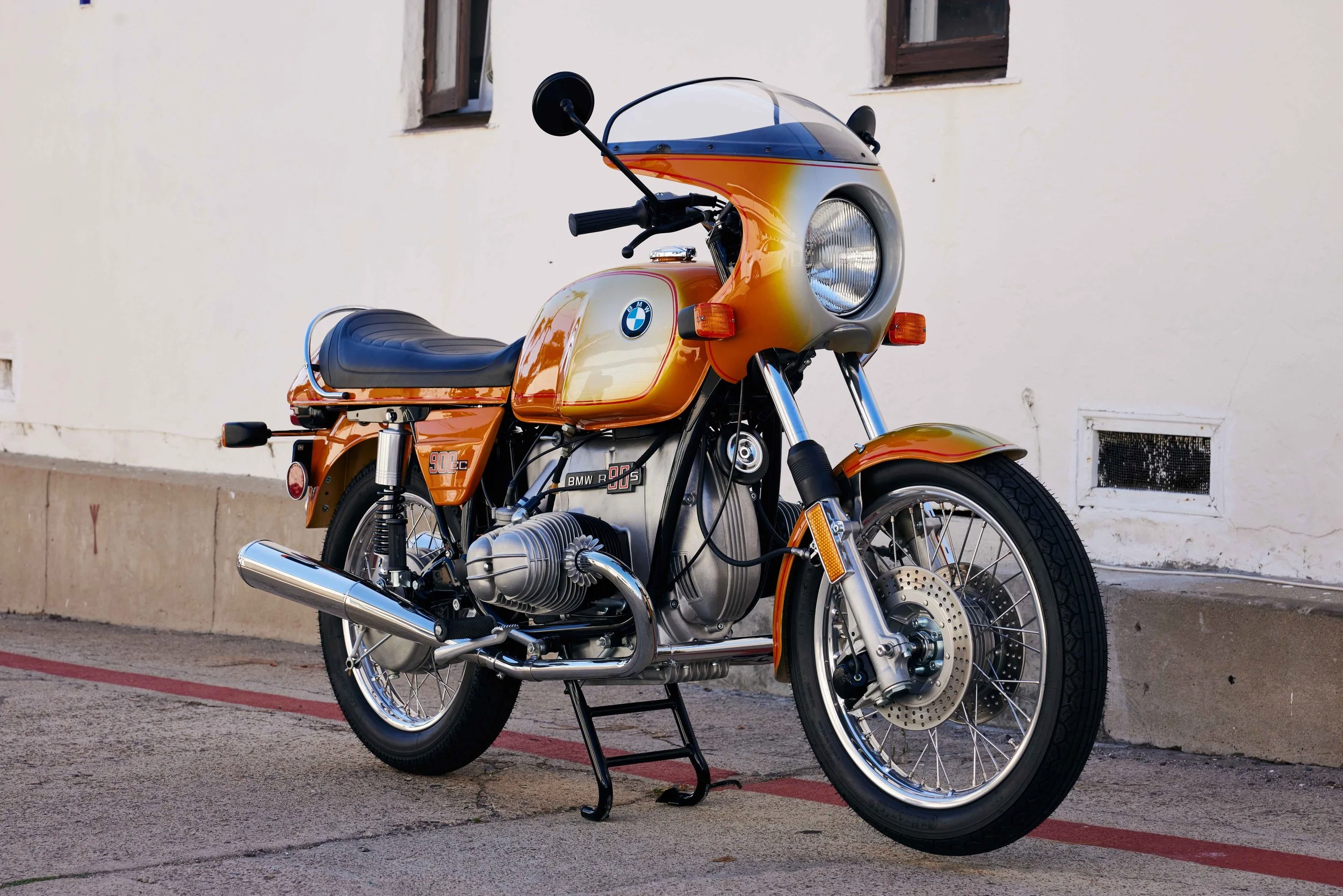

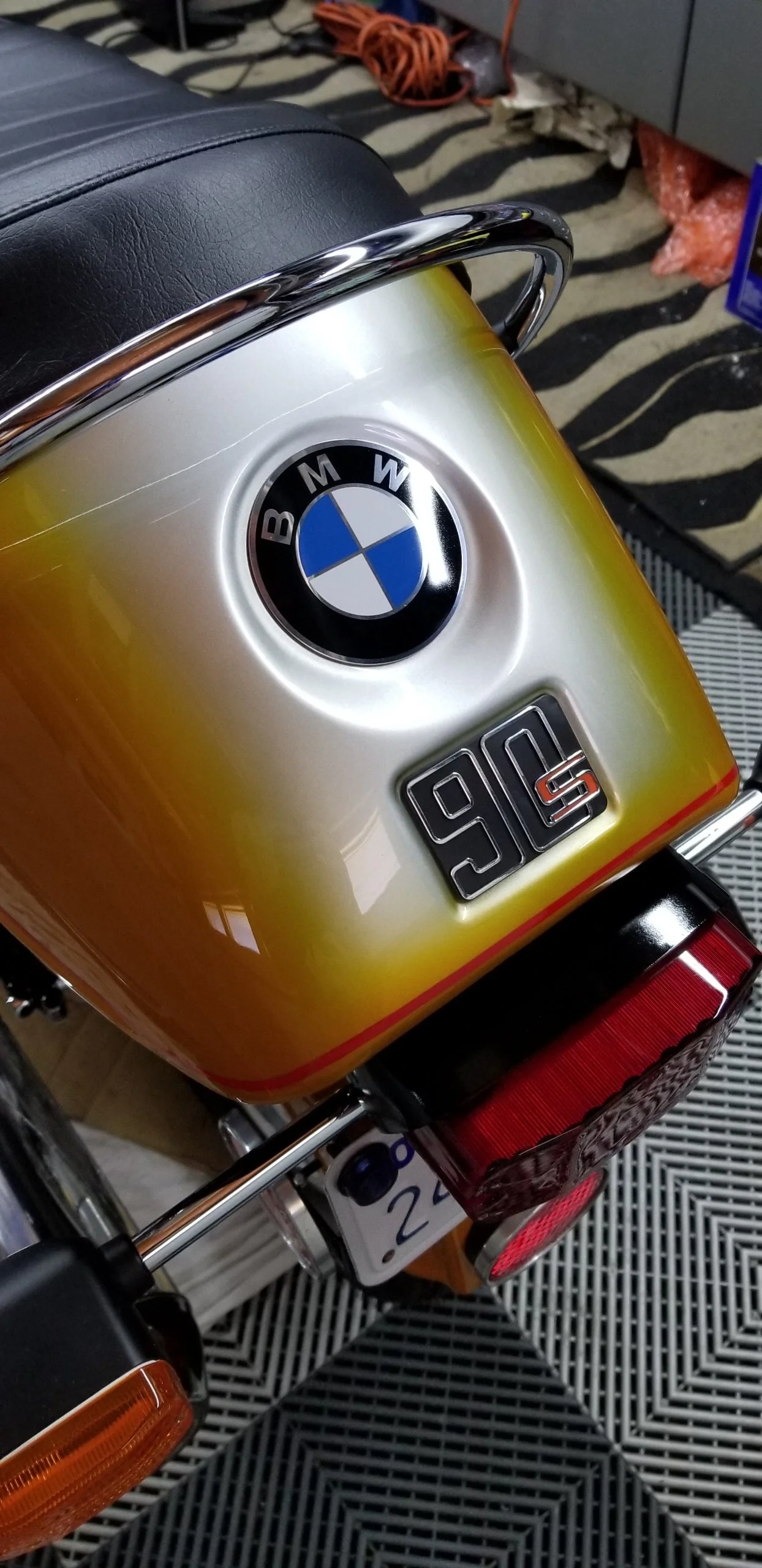

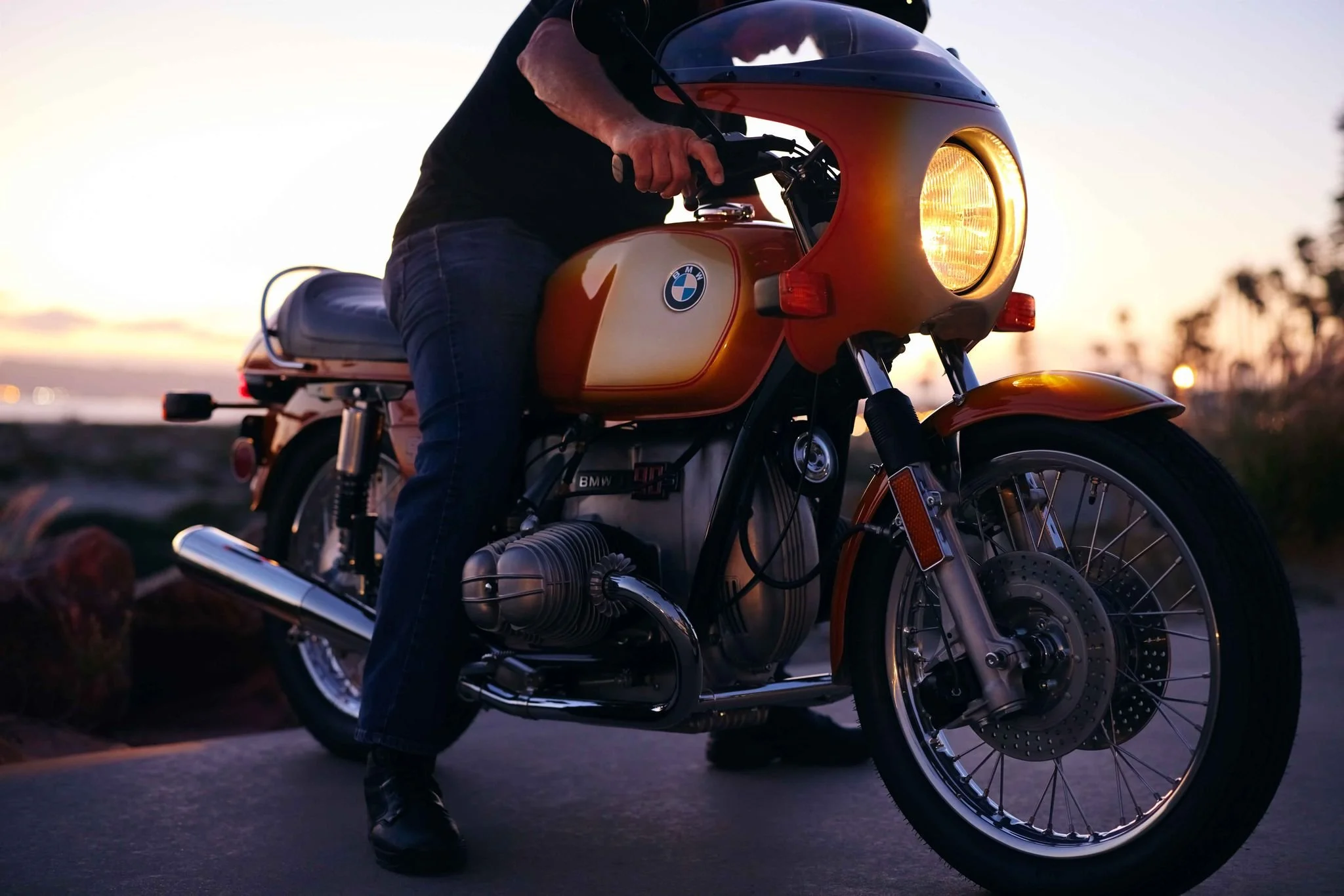

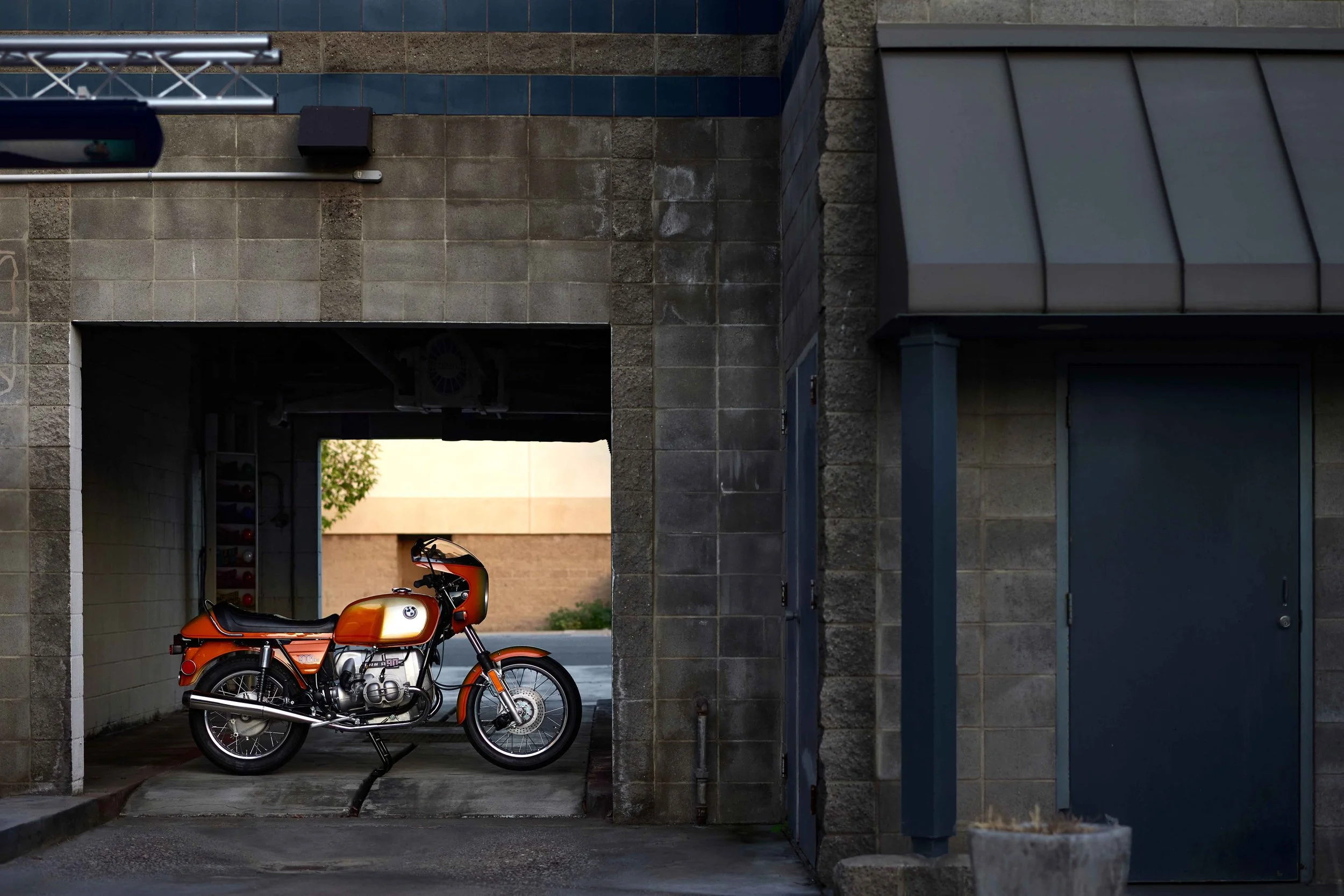

The bike is finished in a silver and orange gradient seen to the left matching the California sunset. It is powered by an 898cc opposed twin mated to a five-speed gearbox. Since the restoration, only 85 miles have been added of which only 35 were by the present owner. The machine is in many ways brand new after restoration, entirely ready for a new lifetime of riding and adventures.
Machines like this are what every restoration should aspire to. The attention to detail required to craft a machine to this level is only achievable by a handful of individuals in the world. The Bring a Trailer result for Mark Francois’ R90S set records, and for good reason. But heed Mark’s own words - this one is a better example.
Details:

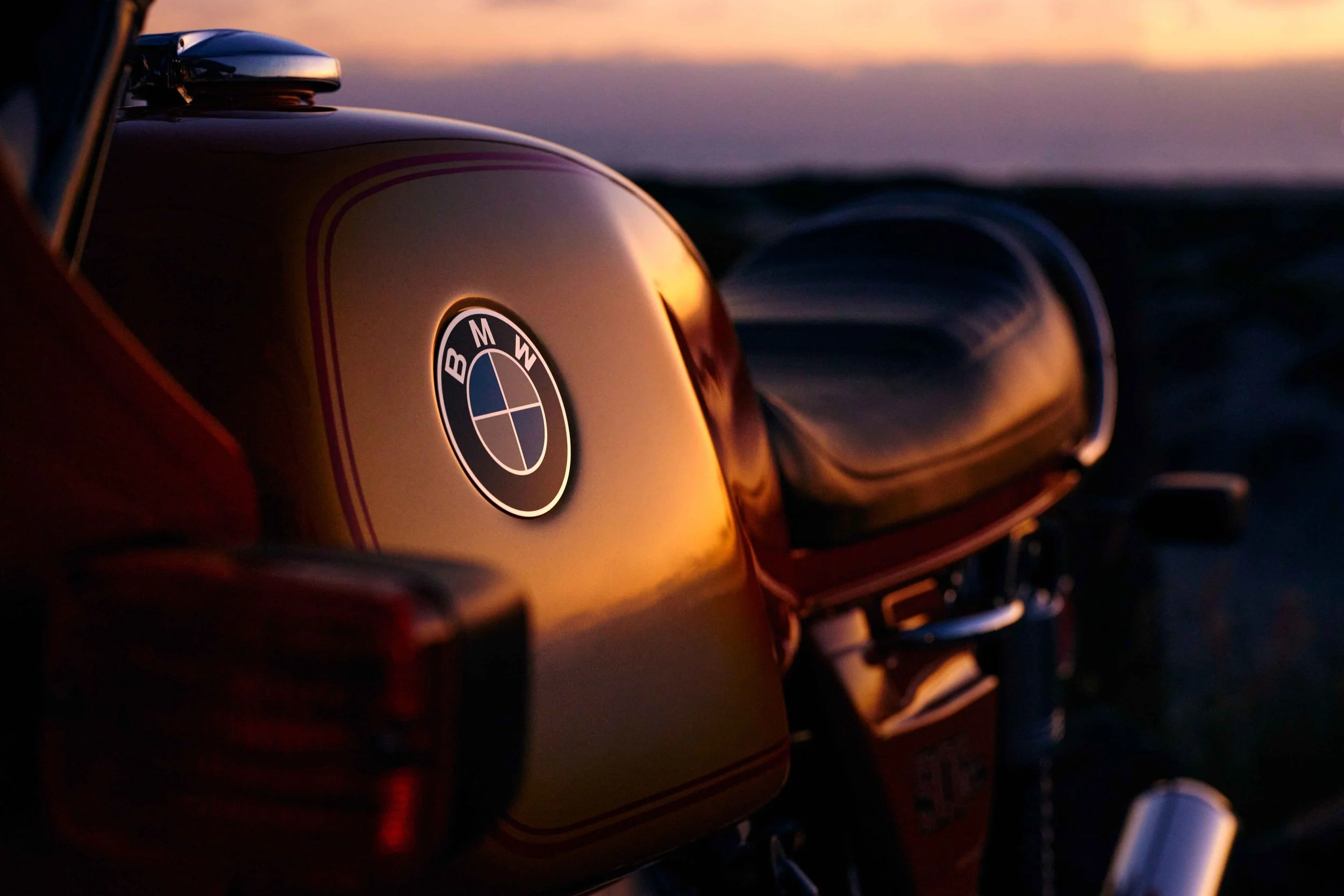

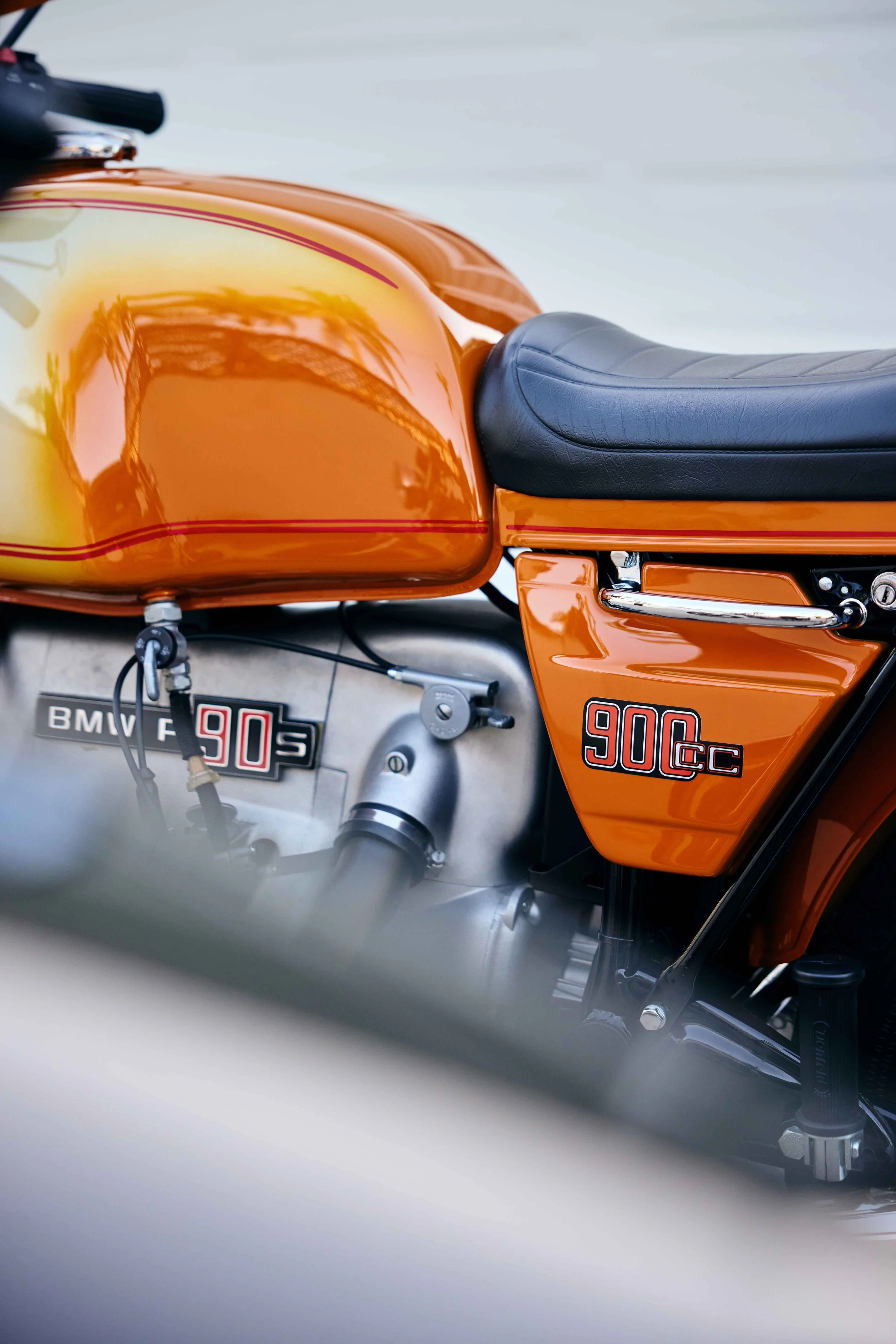

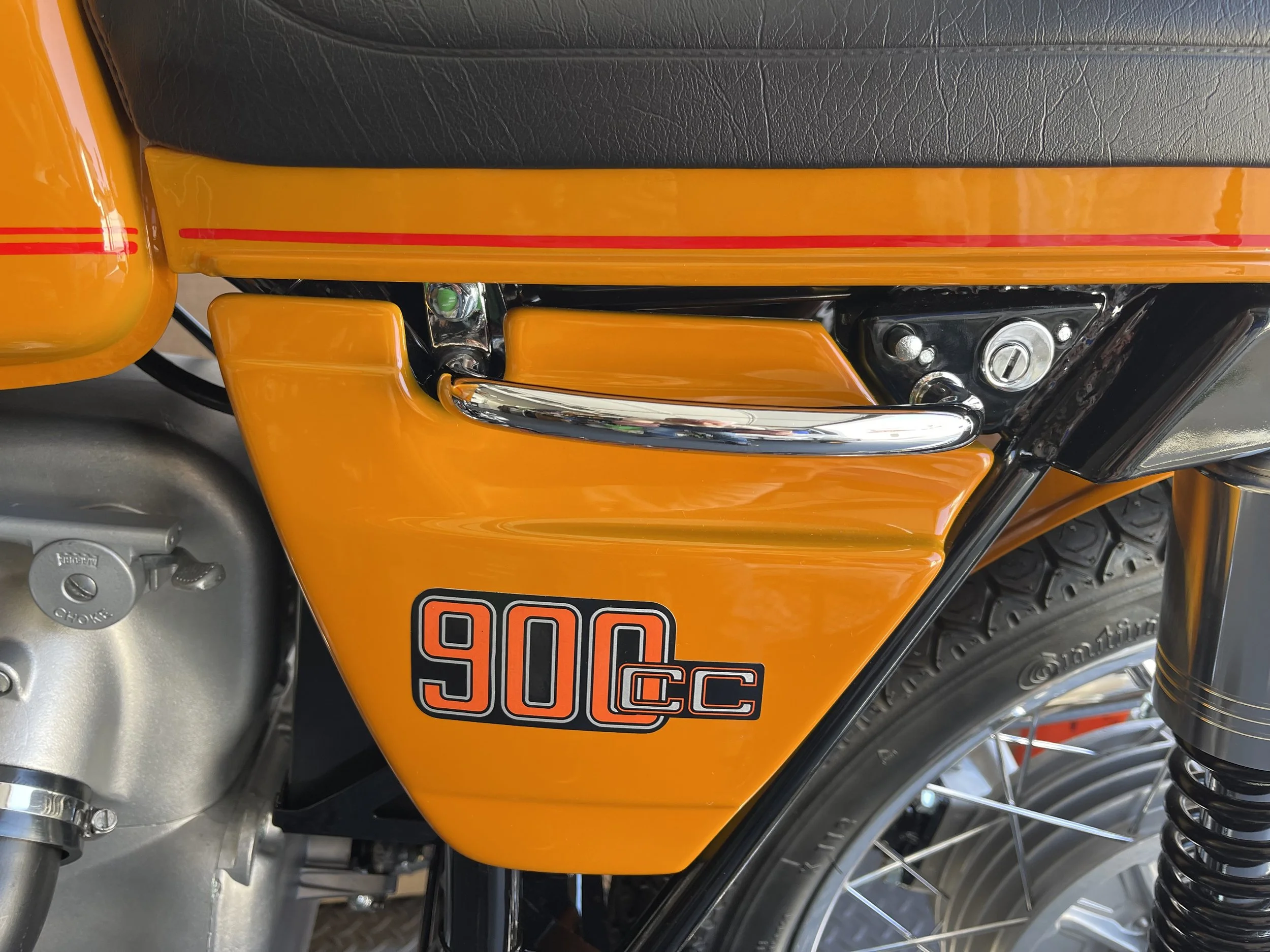

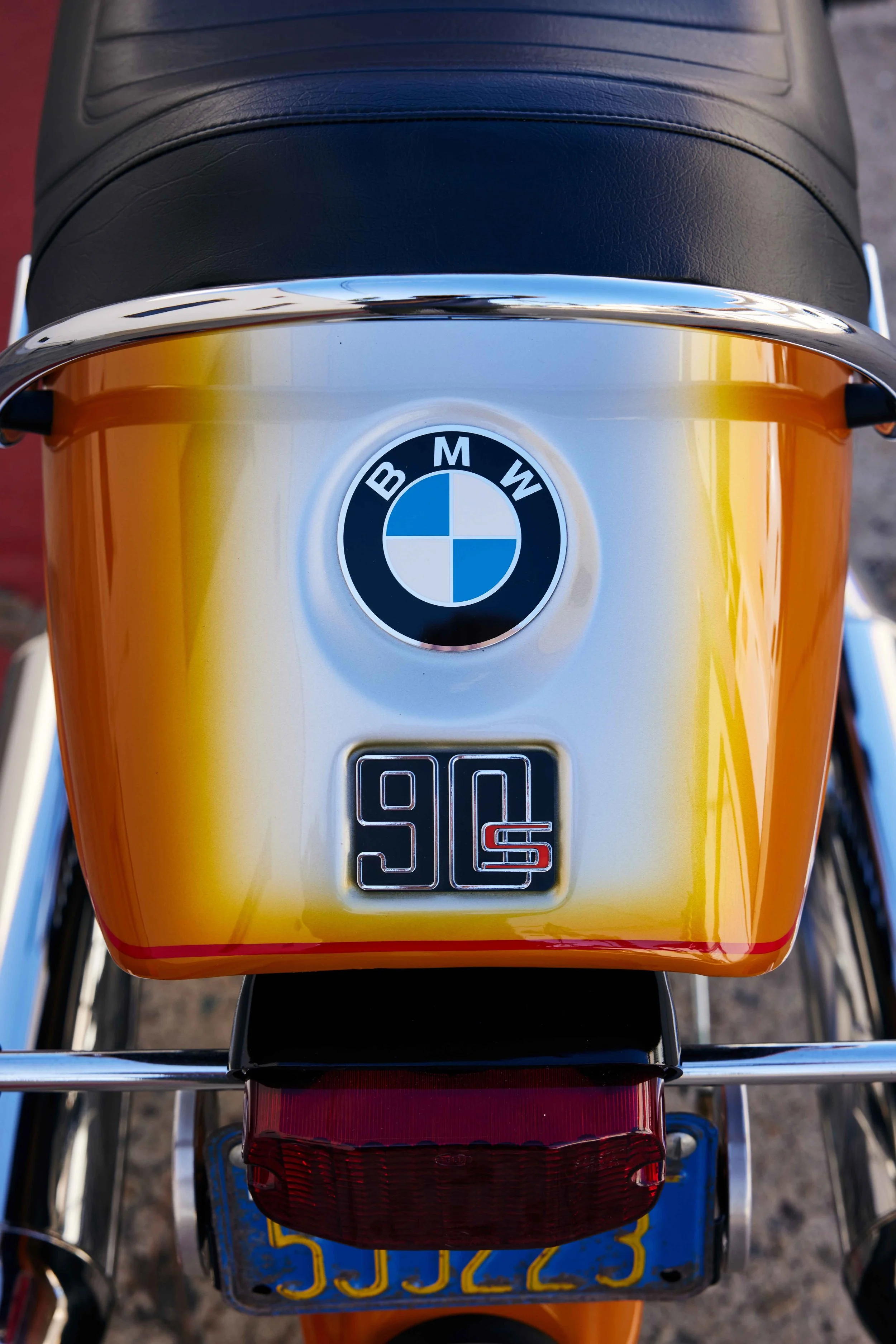

Daytona orange with hand-applied red pinstriping

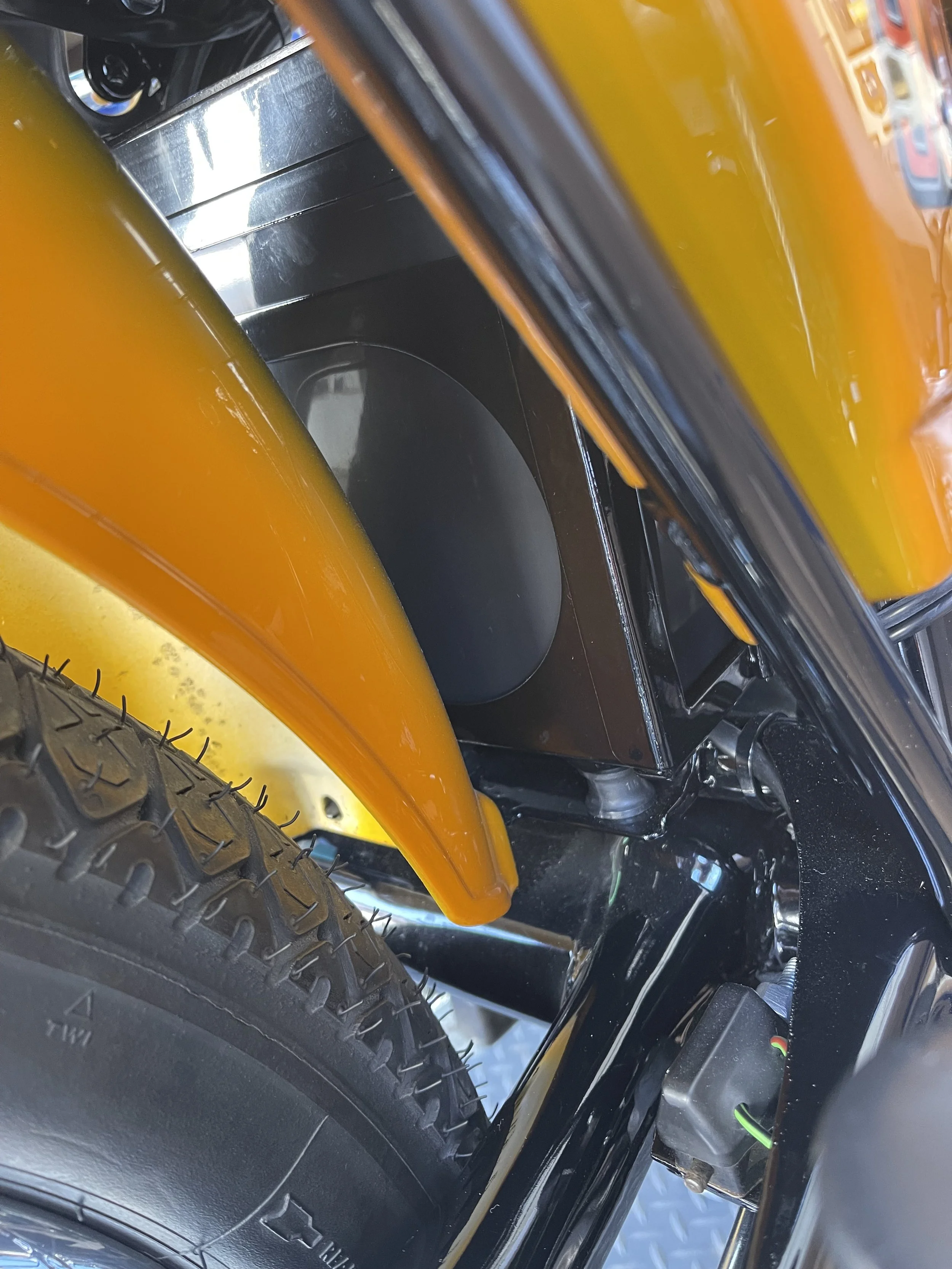

black powder-coated frame
Overhaul of the engine during restoration

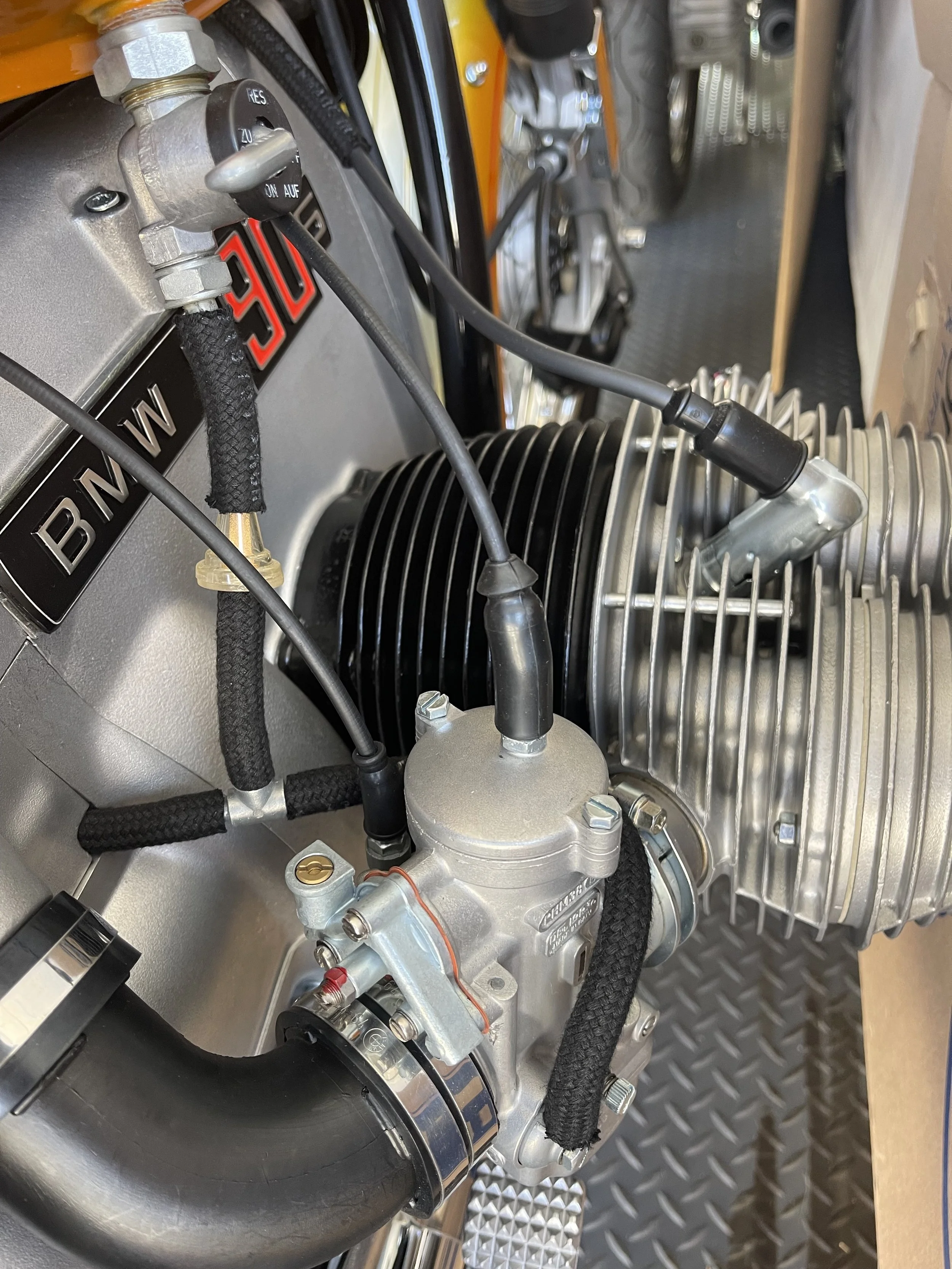

Rebuilt Dell’Orto PHM 38mm carburetors
Overhauled transmission
Replaced clutch assembly

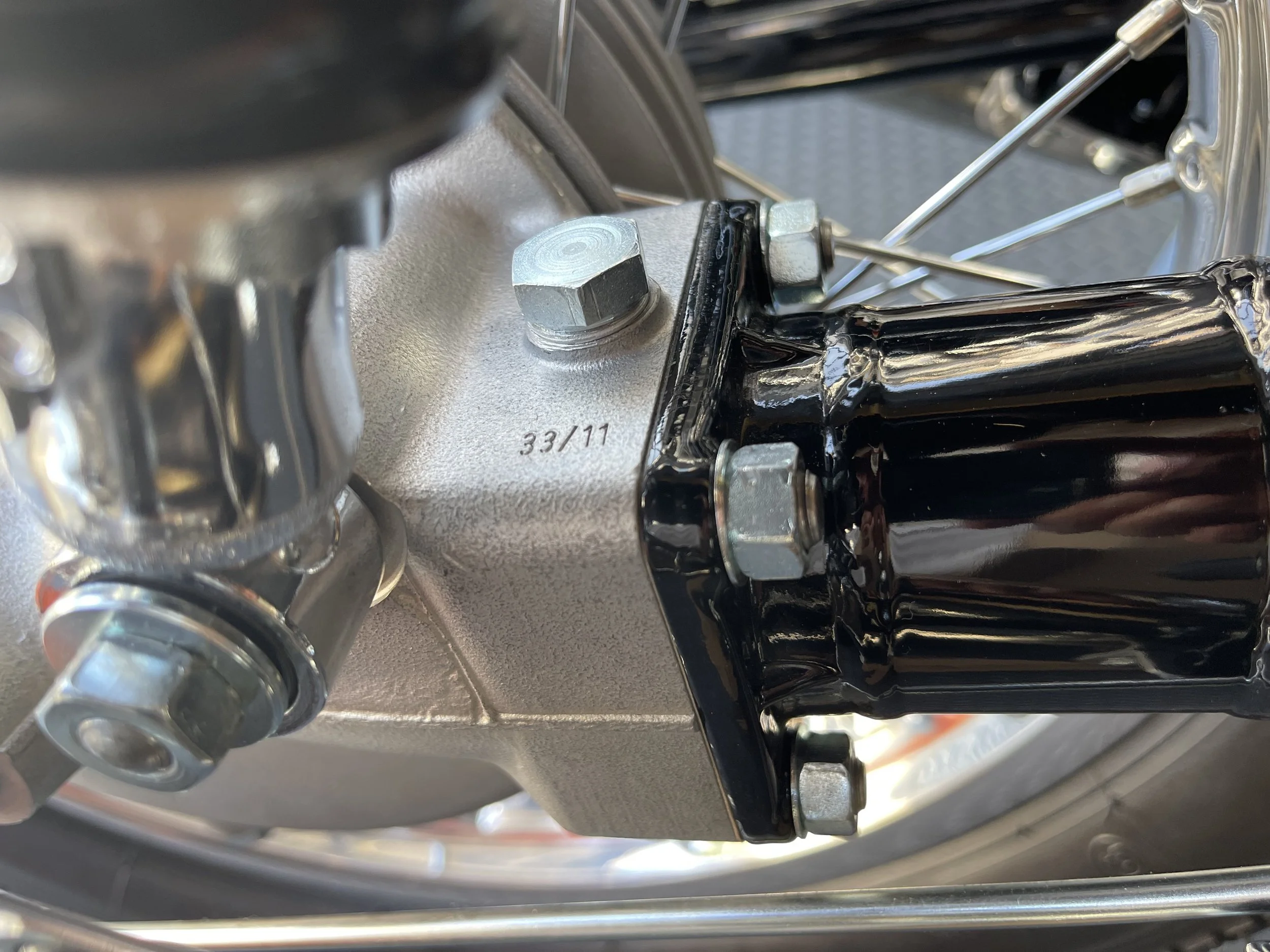

Driveshaft

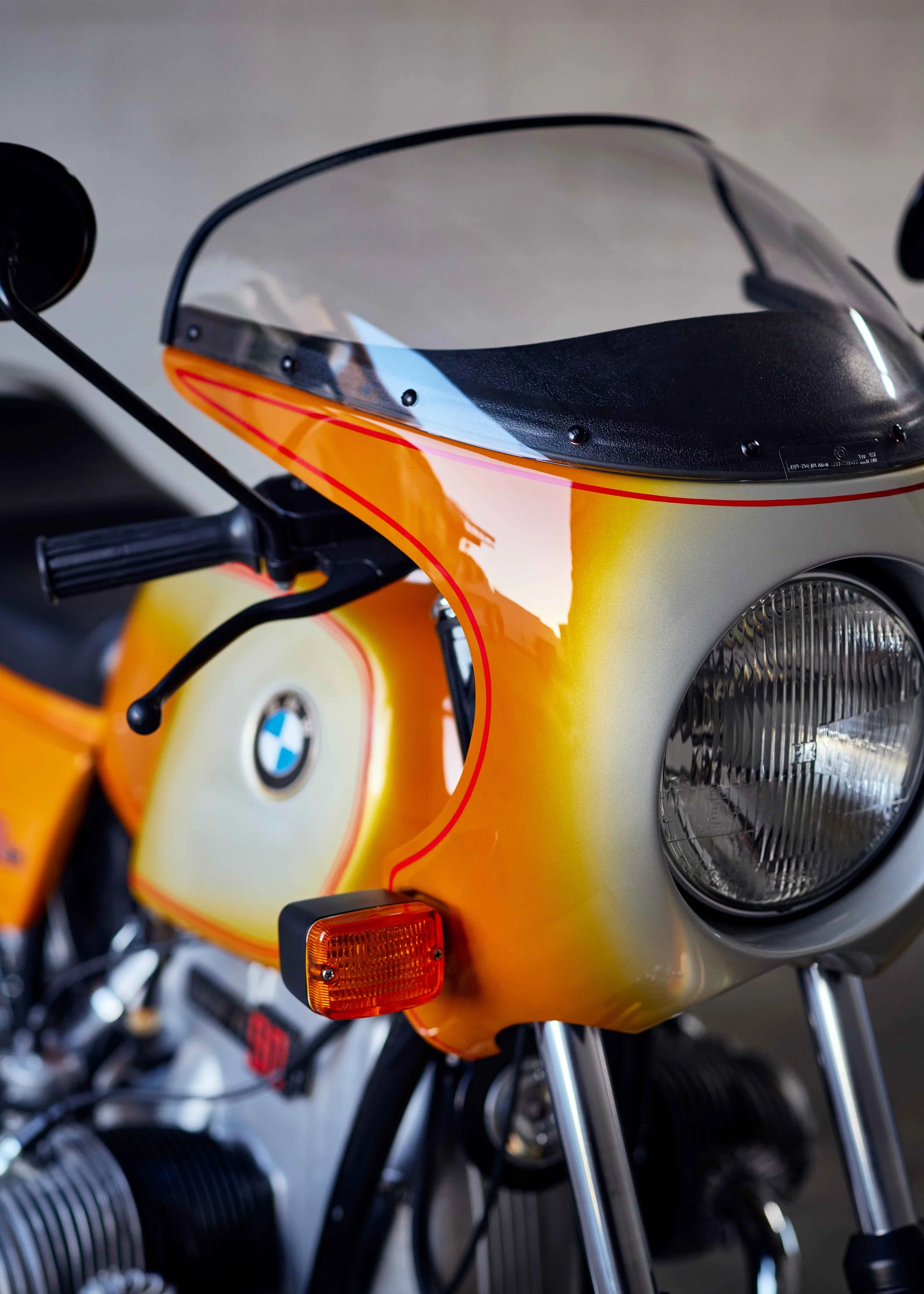

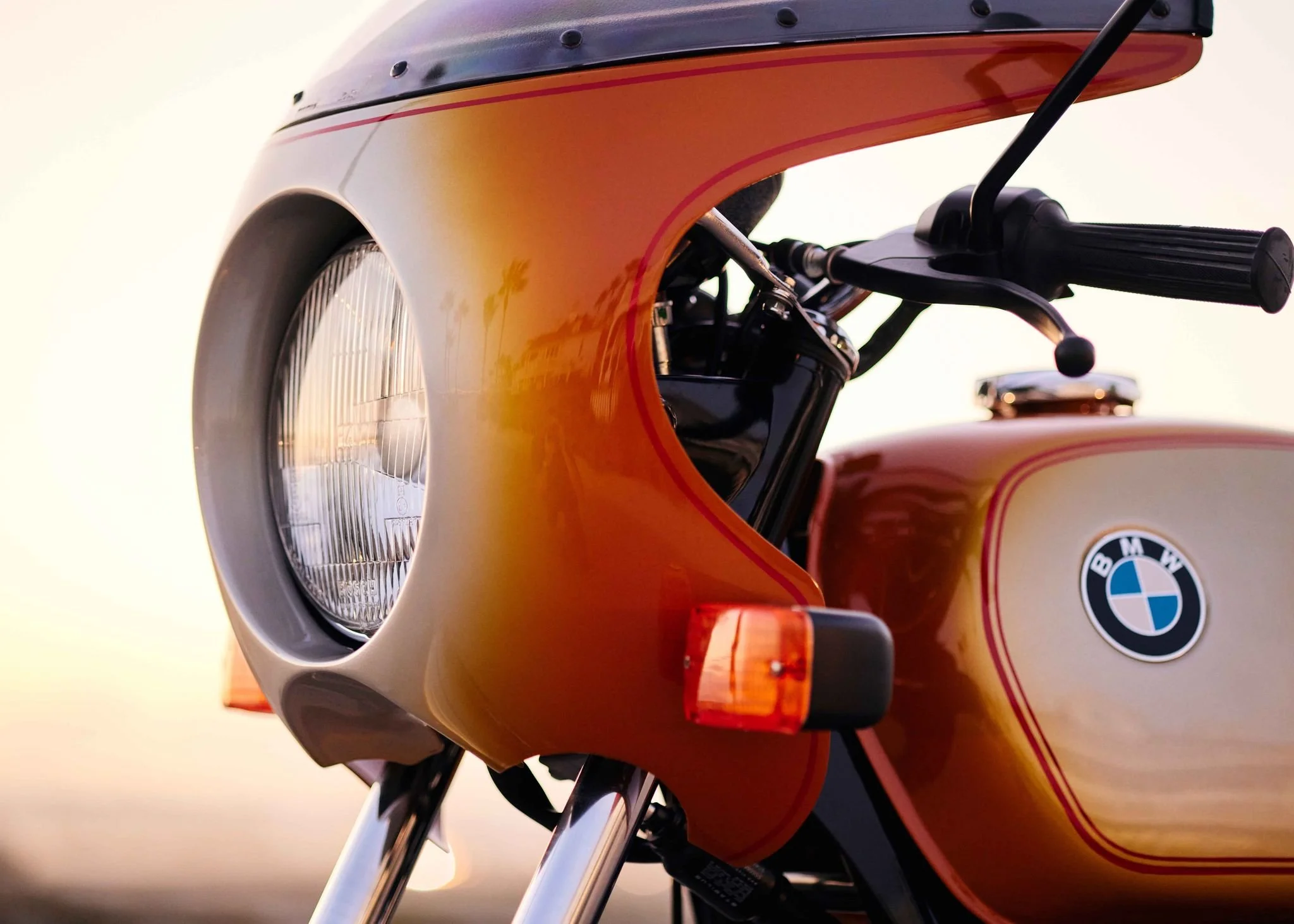

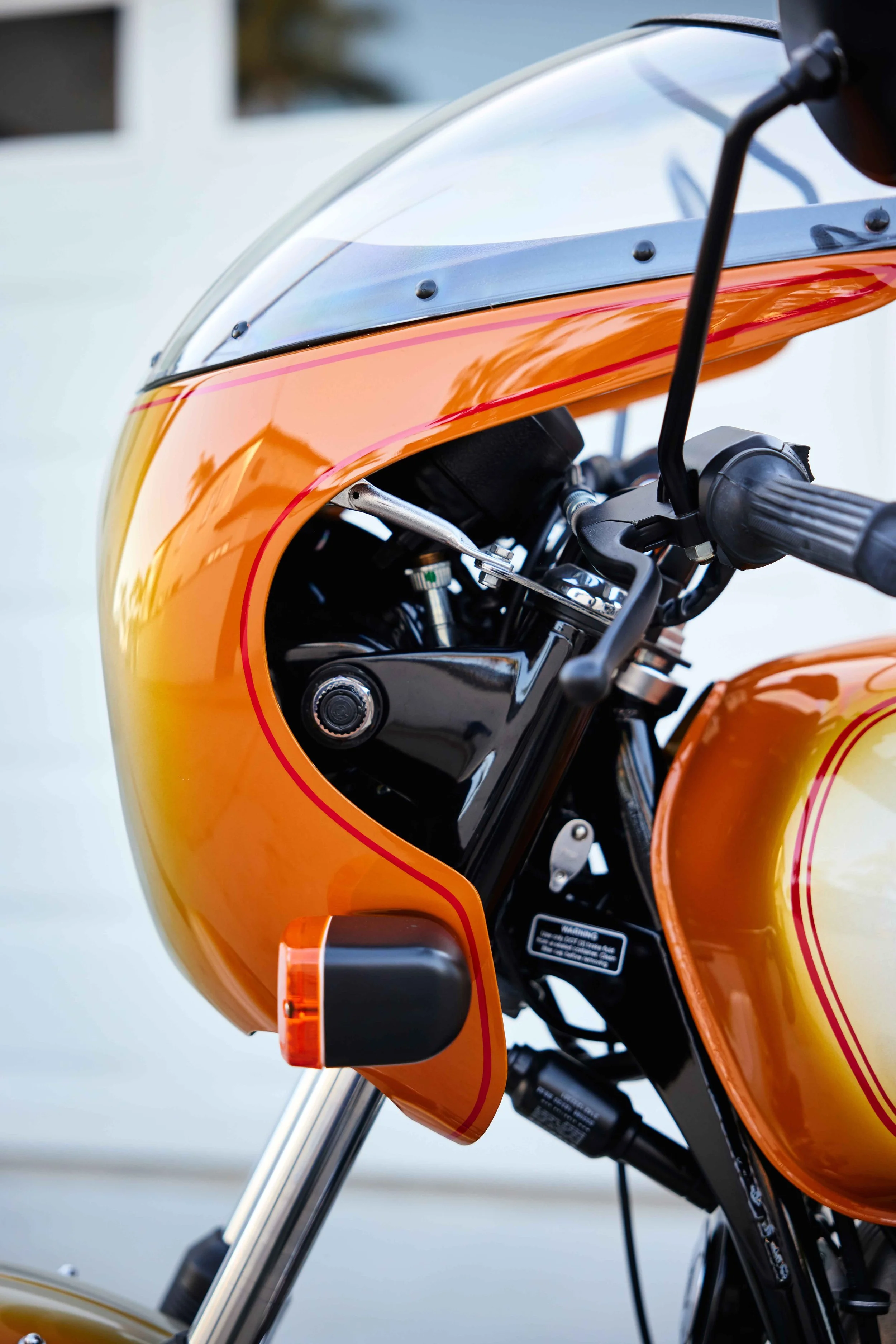

Quarter-fairing
Replacement clear windscreen

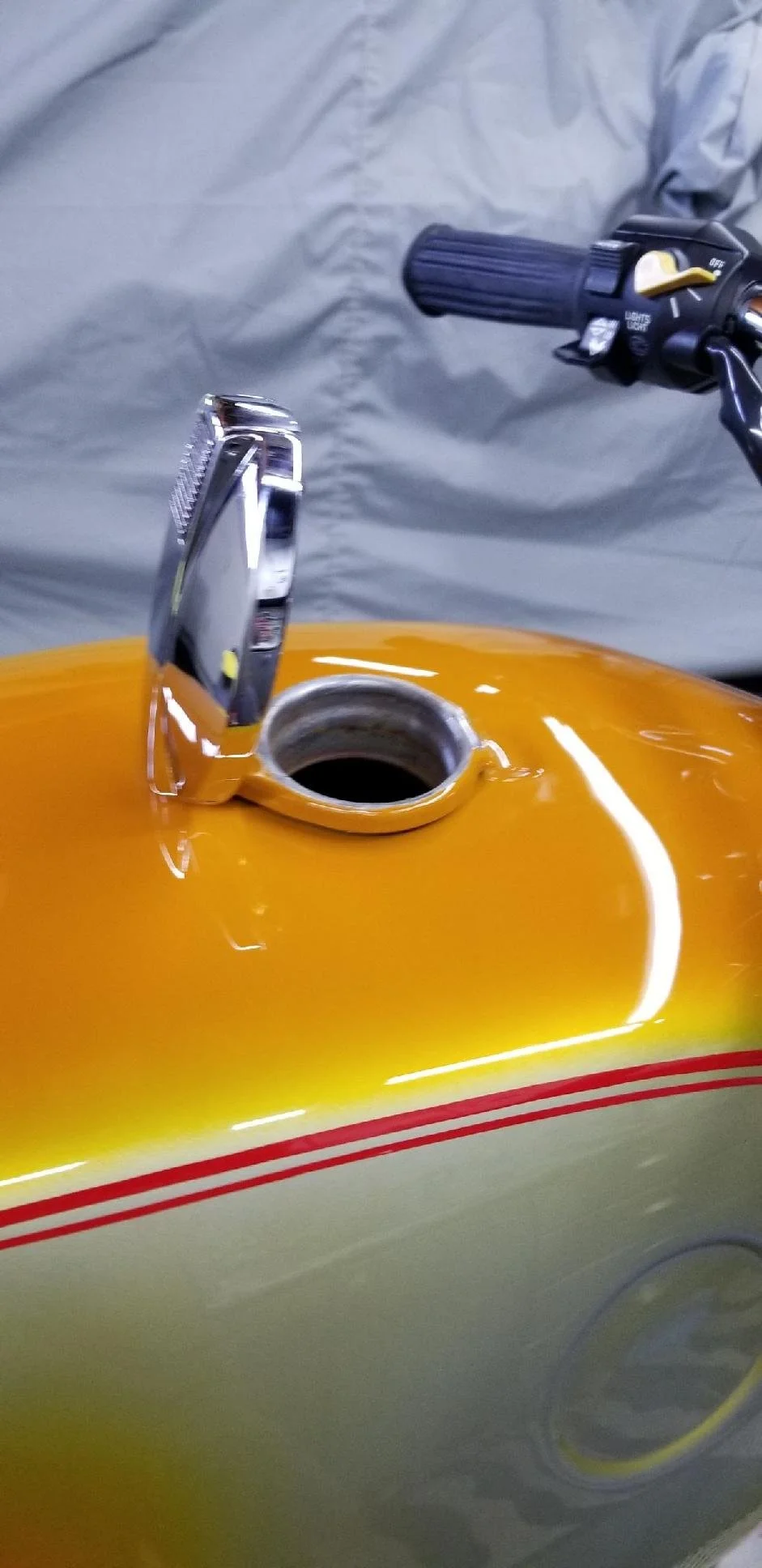

Six gallon fuel tank

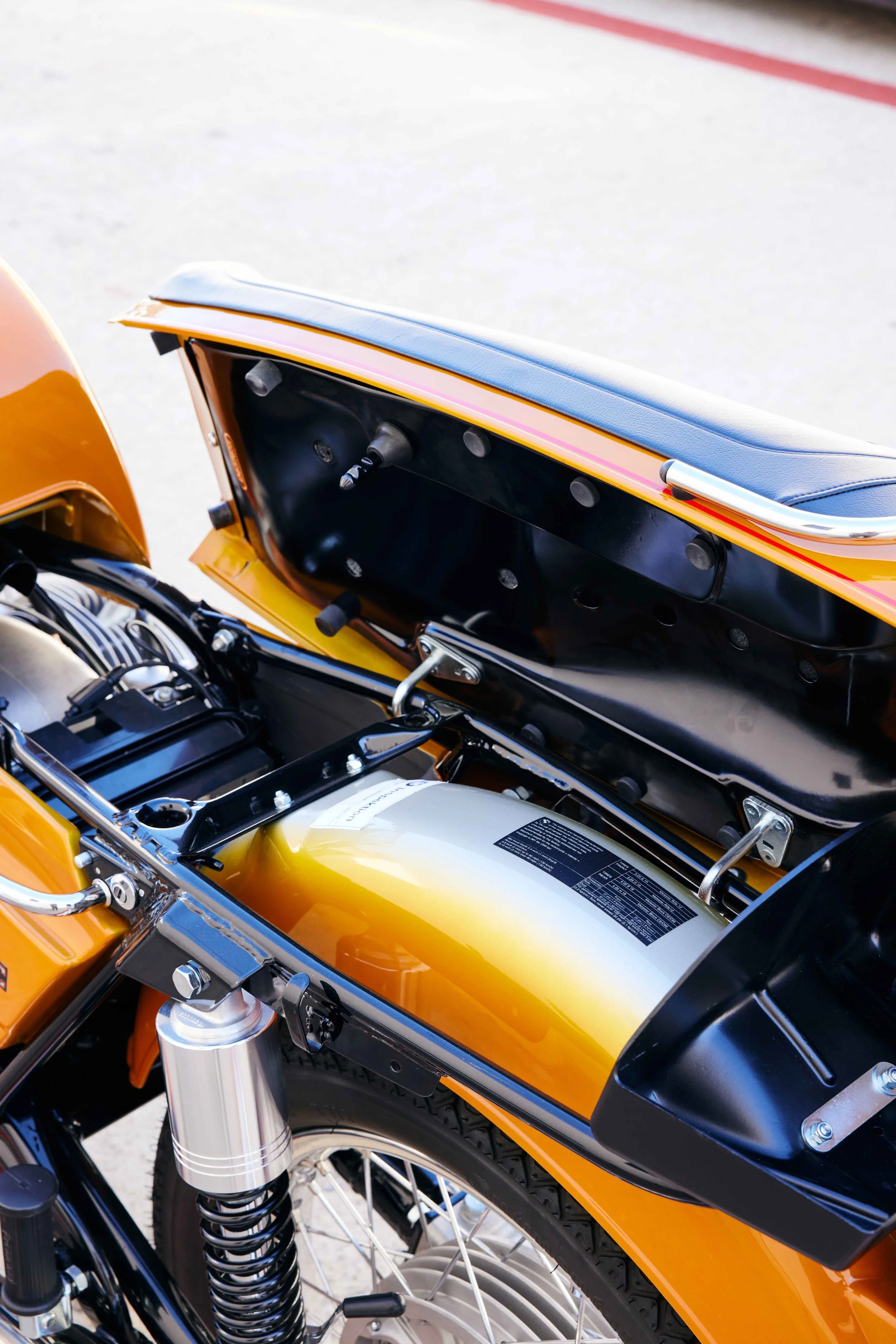

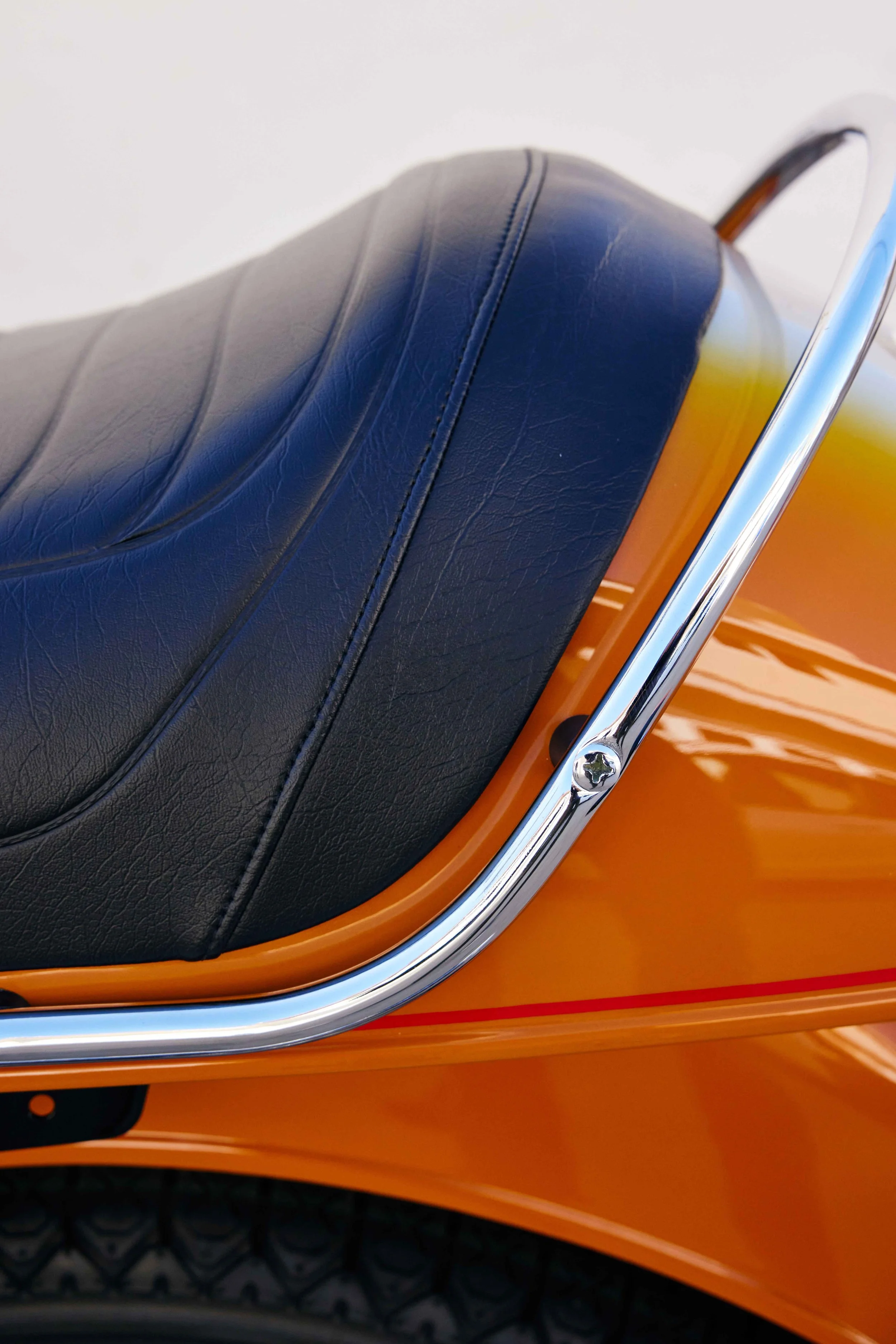

Reupholstered stepped two-up sport seat
Lift-assist handle and chrome grab rail

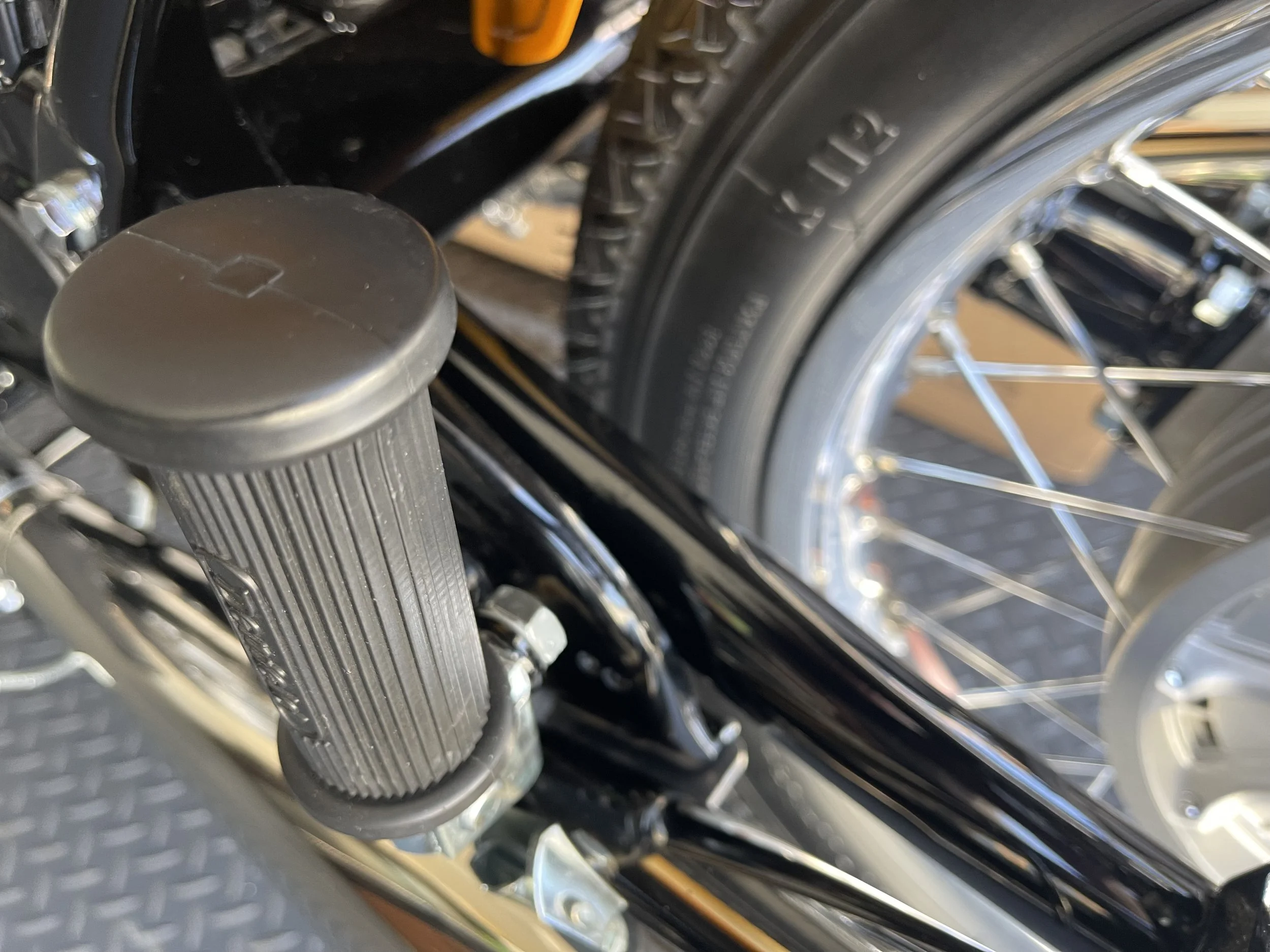

Folding passenger foot pegs
Both center and side stands
Dual front disc brakes
Steering damper
Electric starter
Twin Dell’Orto carburetors

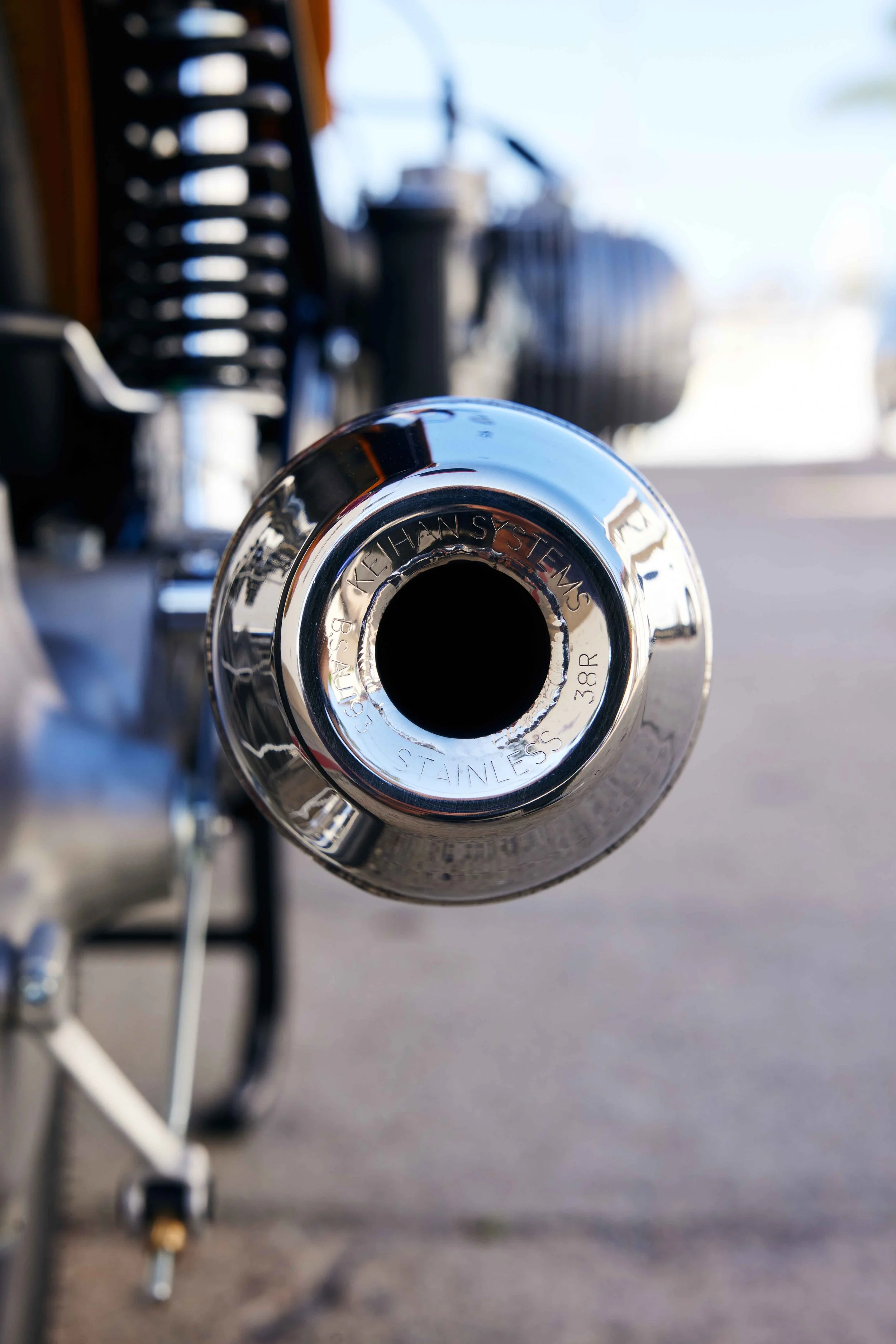

Stainless-steel mufflers
Owner’s manual
BMW tool roll, shop towel, tire pump
Complete restoration records
Clean California title in the seller’s name

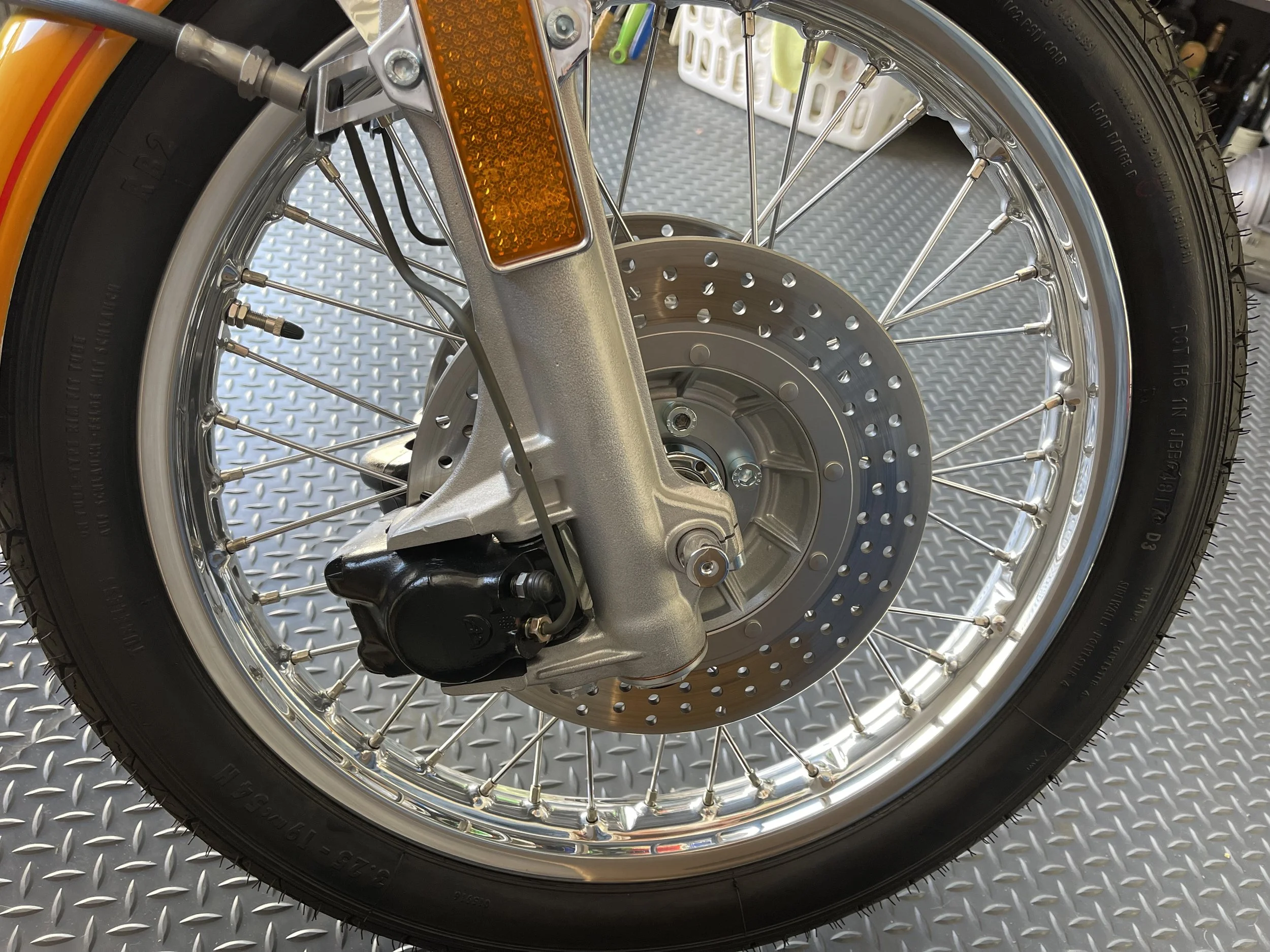

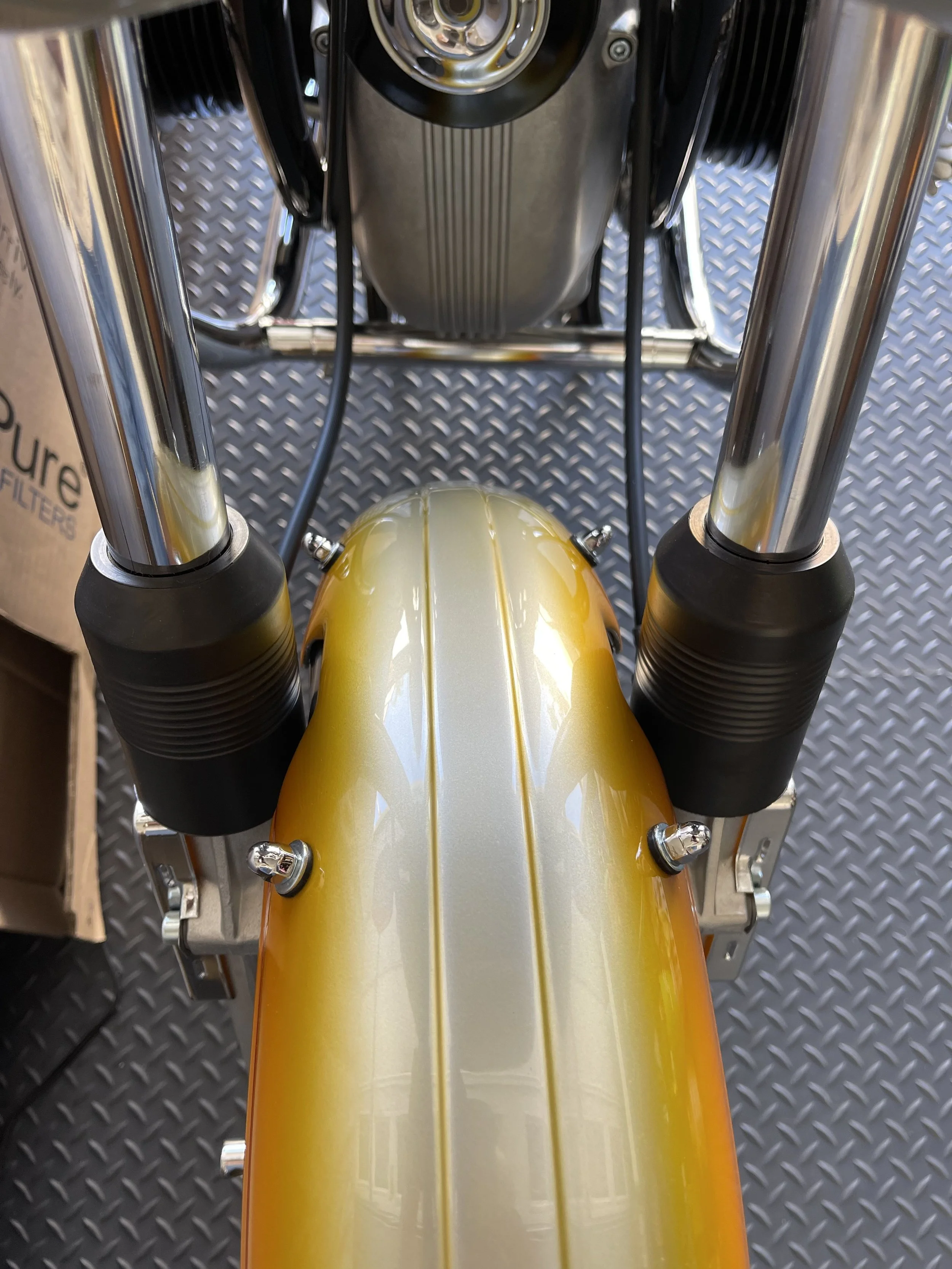

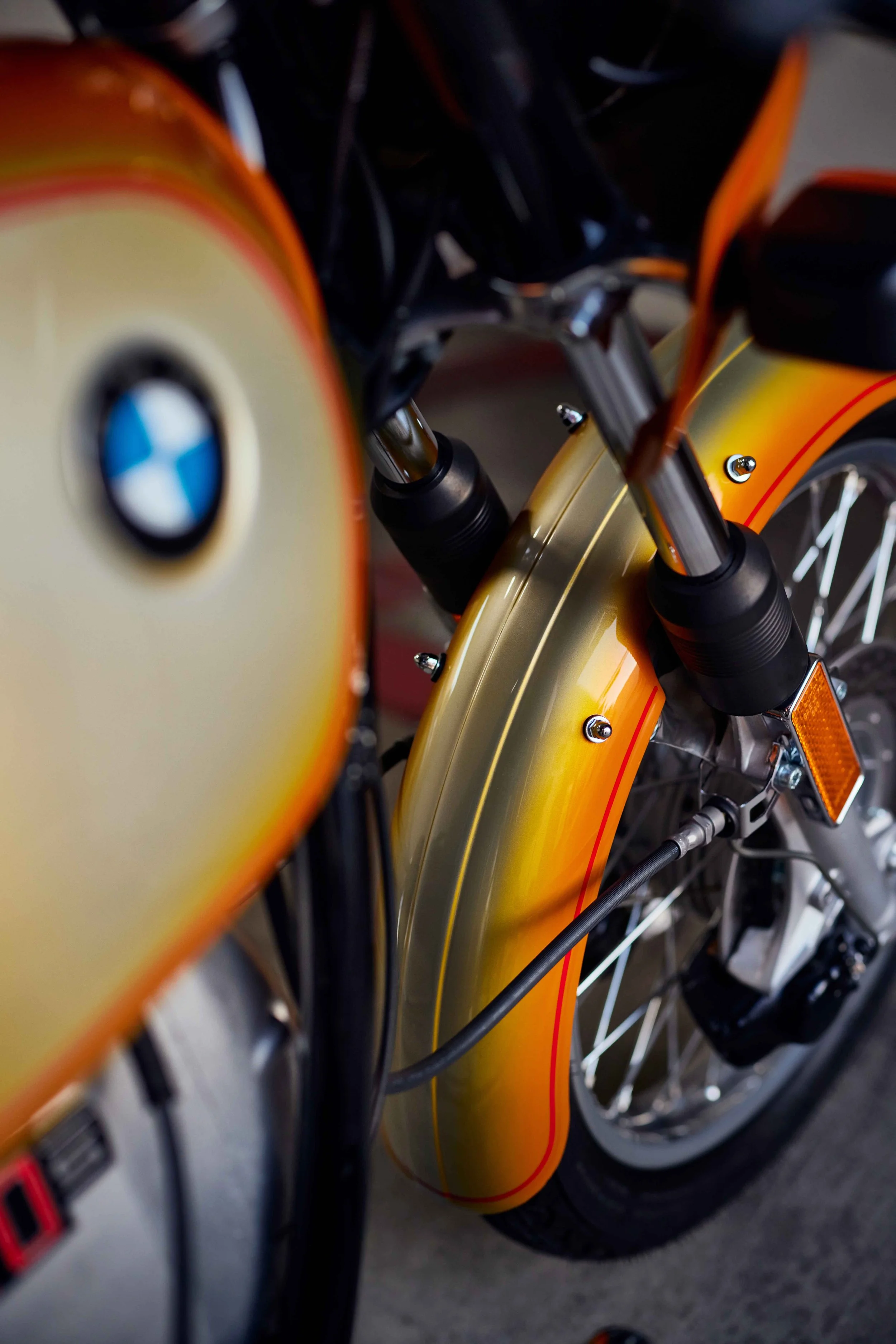

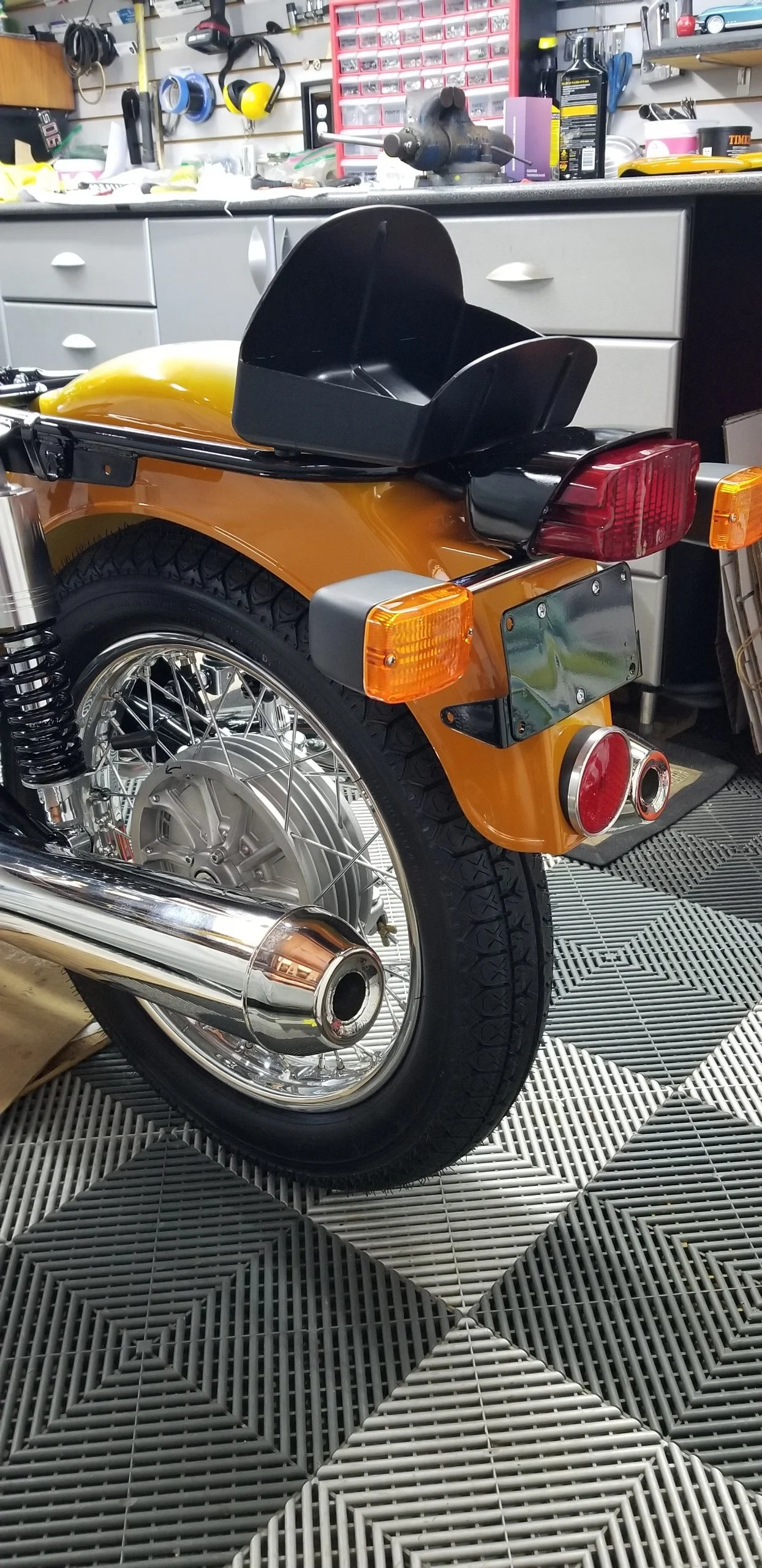

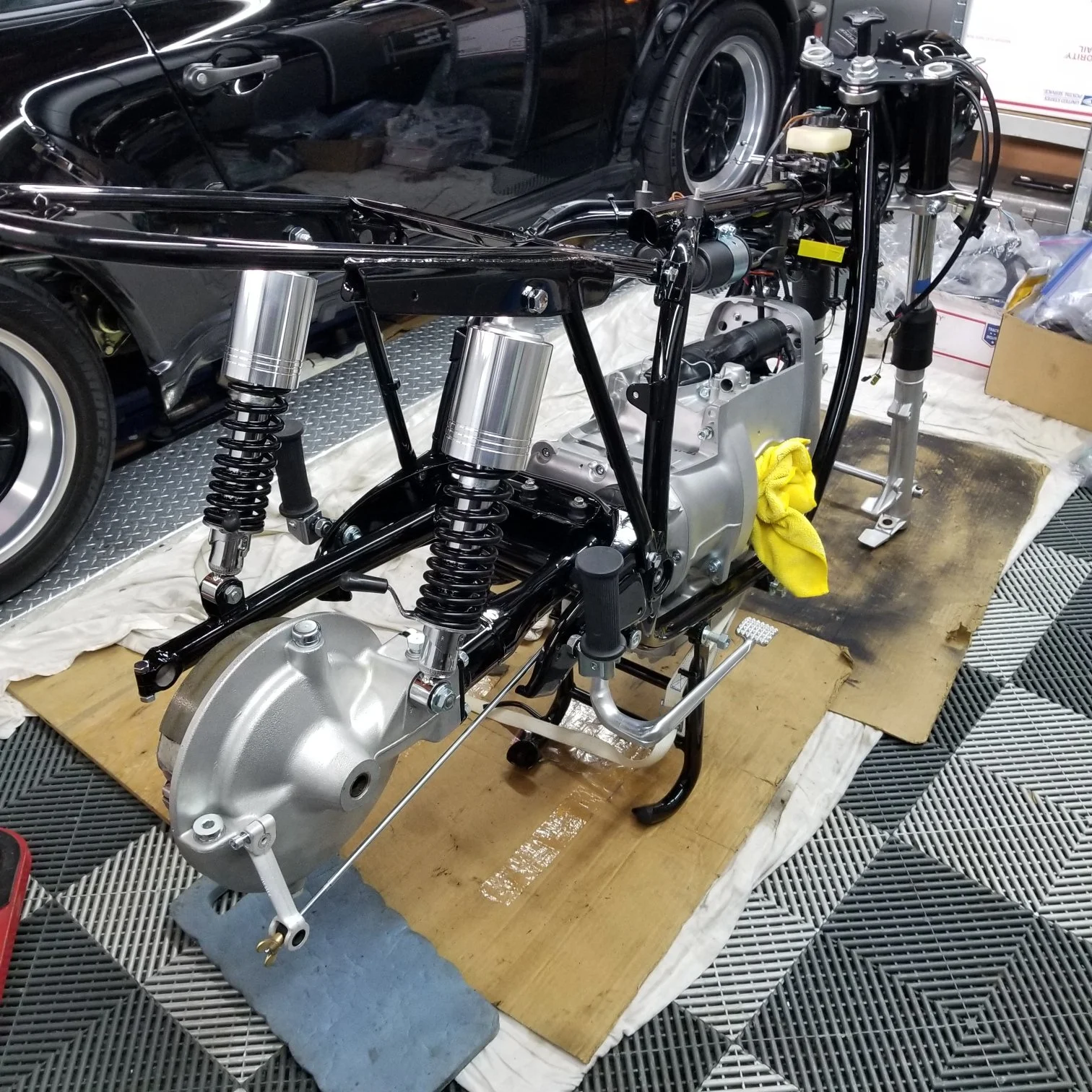

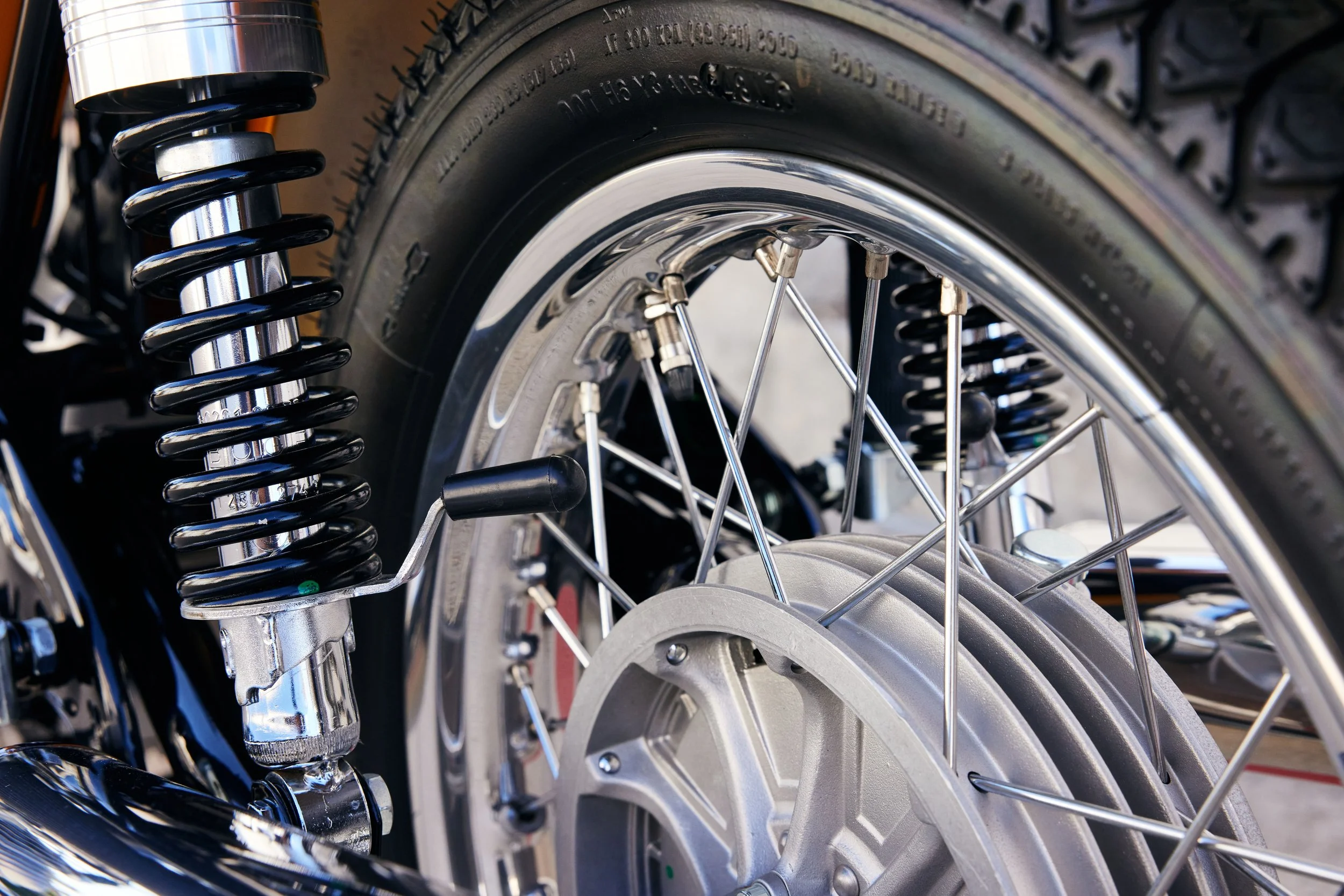

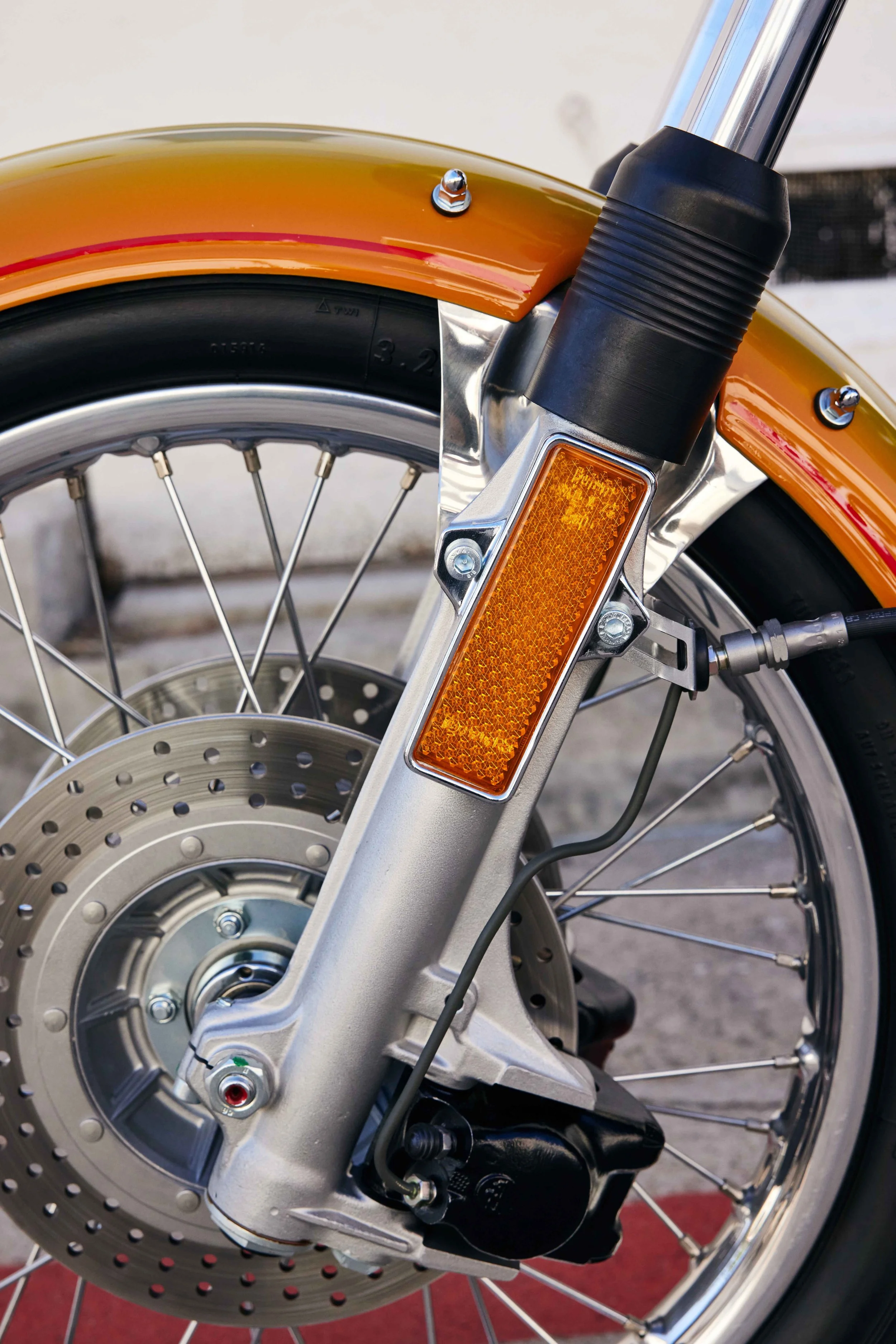

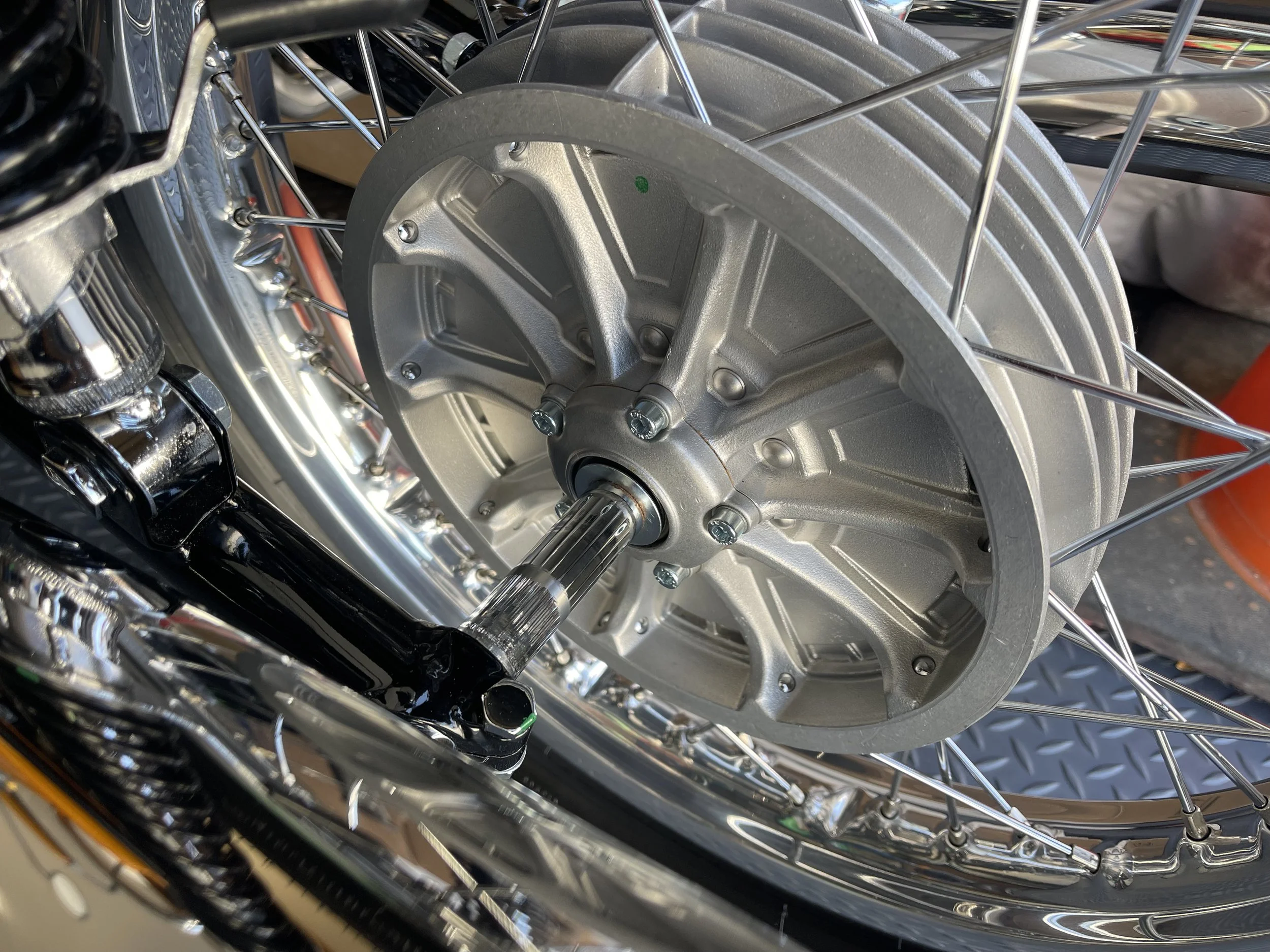

Rebuilt wheels with polished aluminum rims, chrome spokes, and replacement bearings and seals wear a 19″ Continental RB2 tire up front and an 18″ Continental K112 tire at the rear. The dual front disc brakes, master cylinder, and rear drum brake were rebuilt during the refurbishment, as were the leading-axle fork and both Boge shocks.

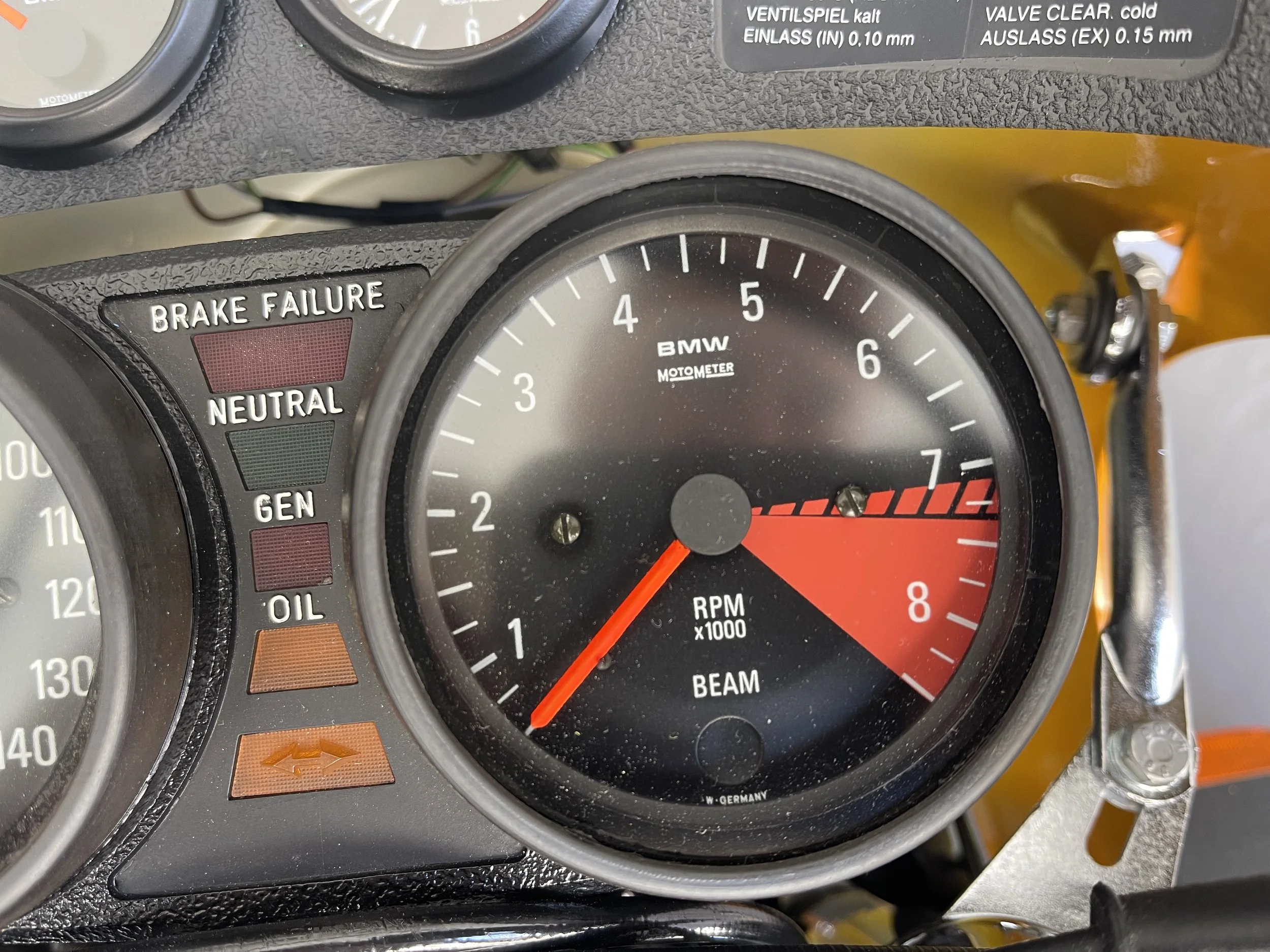

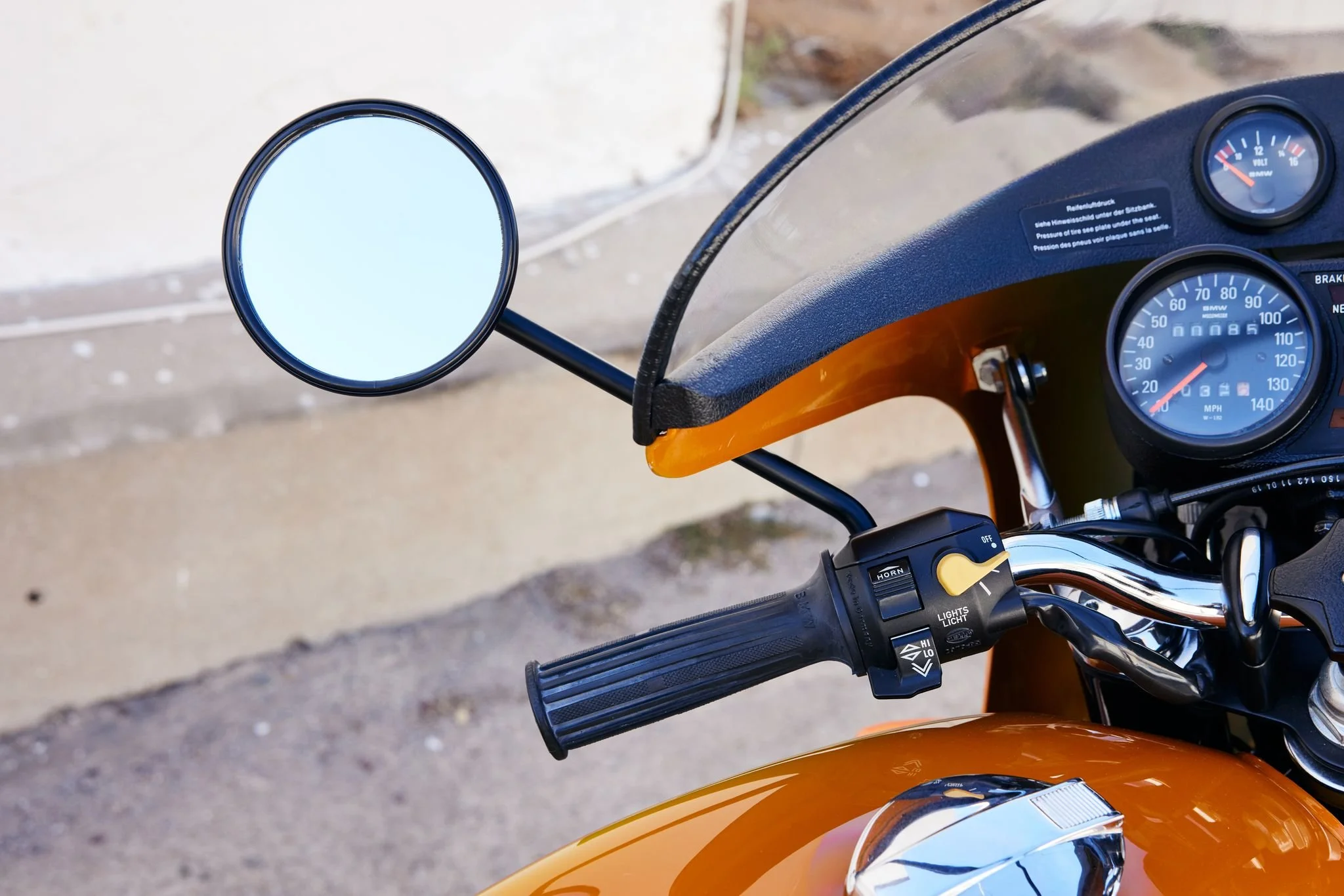

The adjustment knob for a rebuilt hydraulic steering damper sits ahead of a chrome handlebar equipped with replacement BMW grips, dual BUMM straight-stalk mirrors, and Hella switchgear. Refurbished instrumentation consists of a 140-mph MotoMeter speedometer and a tachometer with a 7,100-rpm redline as well as a voltmeter and an analog clock that reside in the fairing above. The five-digit odometer shows 85 miles which have been added since completion of the refurbishment.

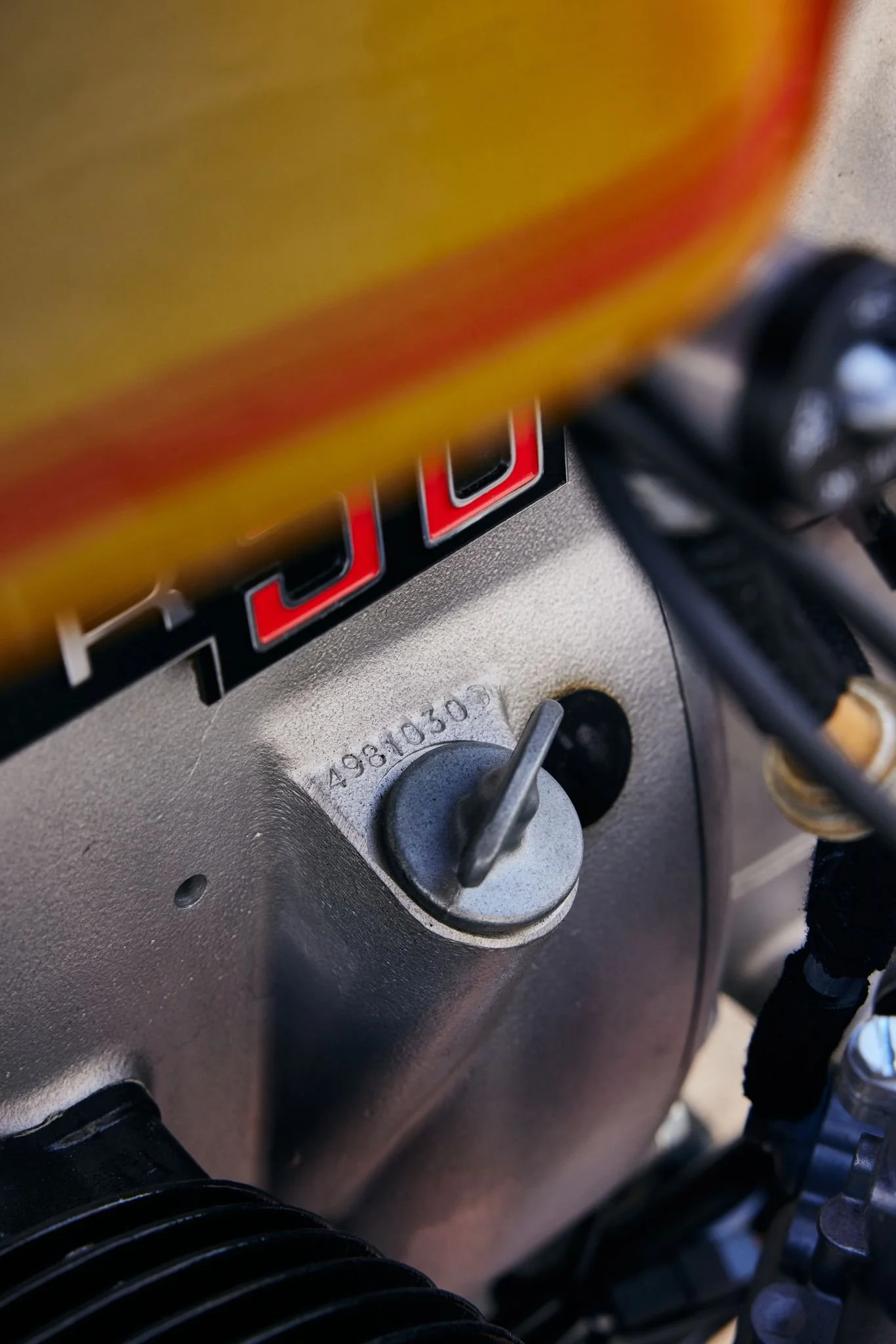

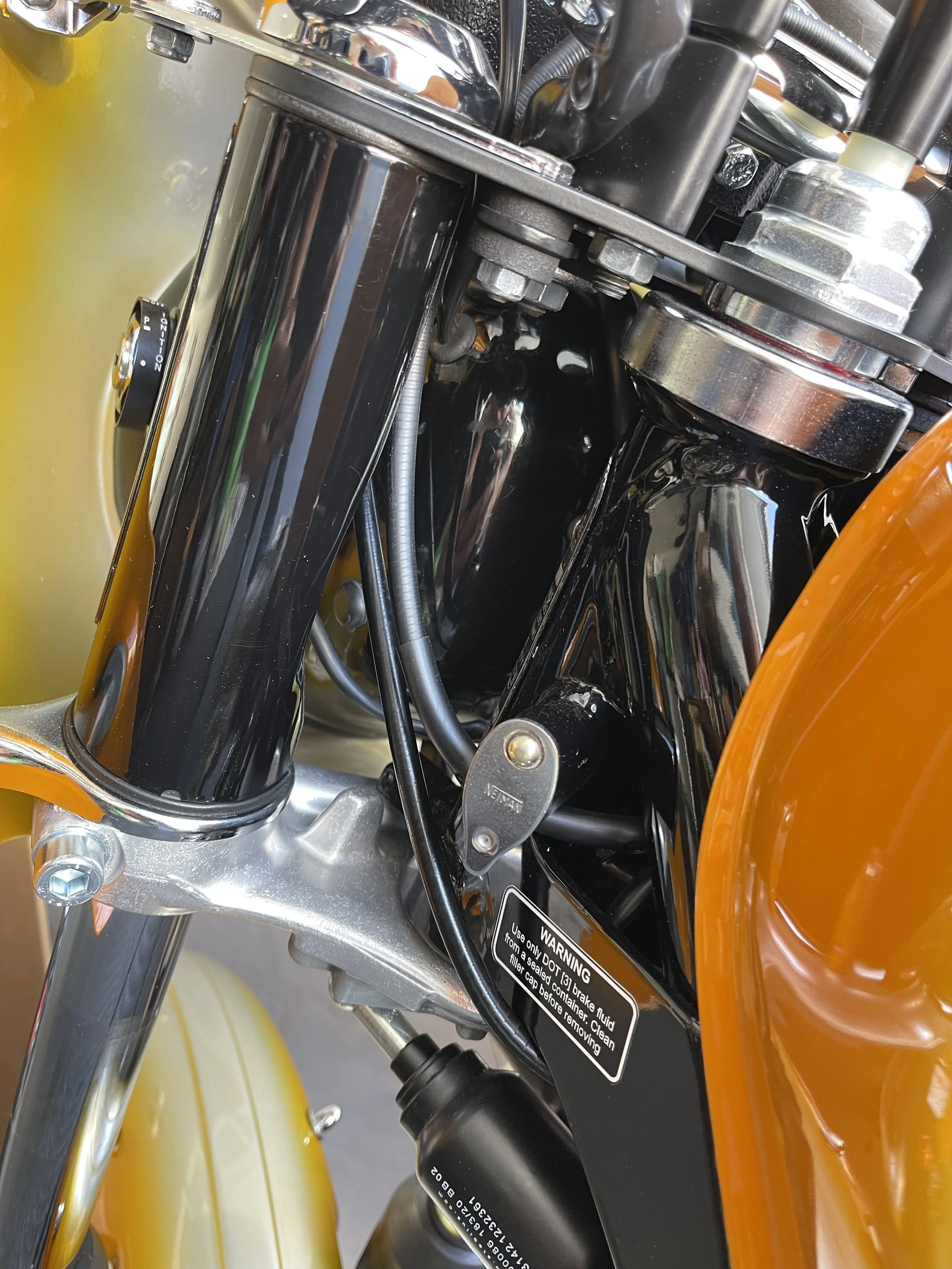

The number 4981030 stamped on the steering neck matches the numbers stamped on the left engine case and on the manufacturer’s plate.
Engine Rebuild…

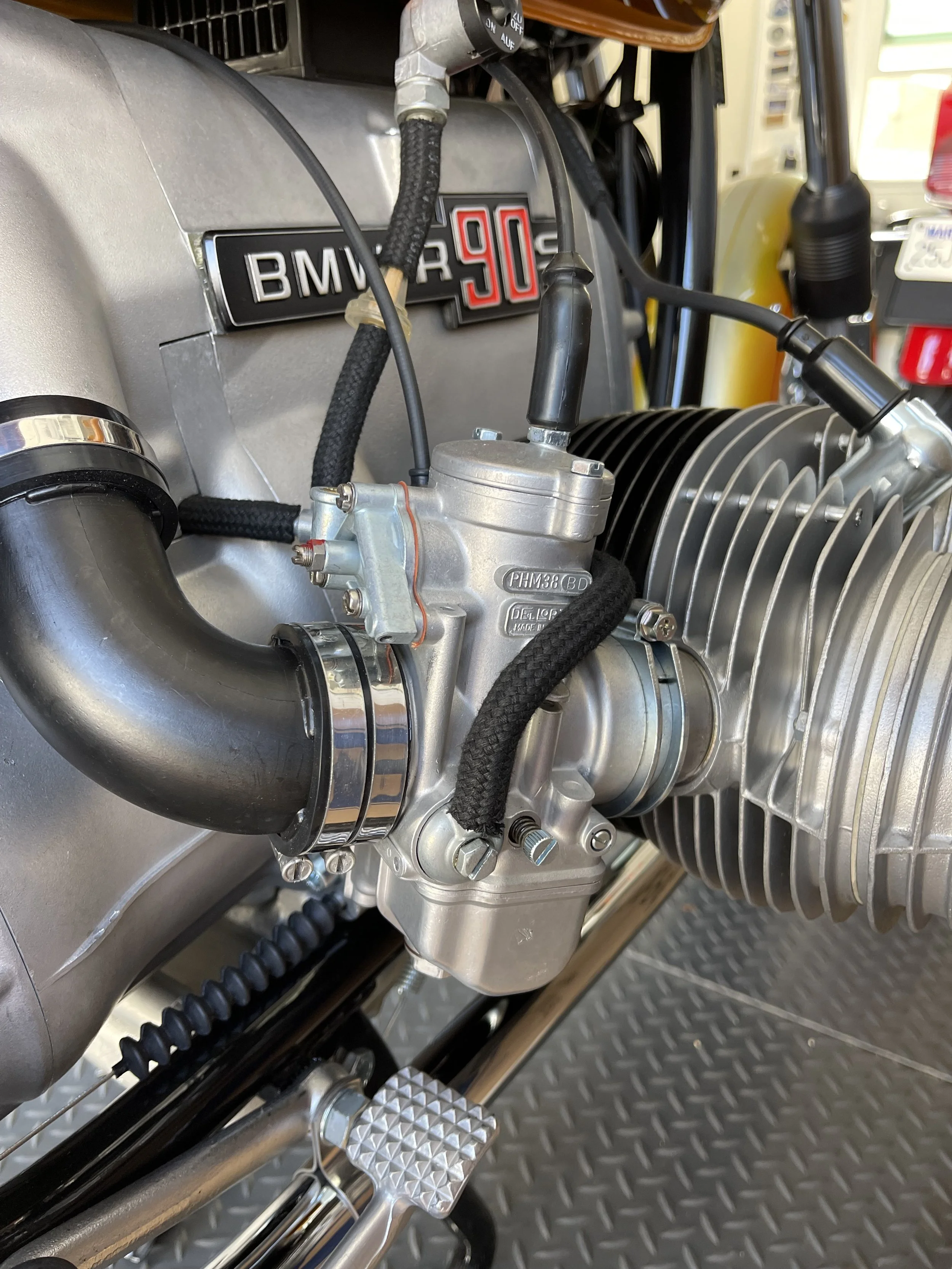

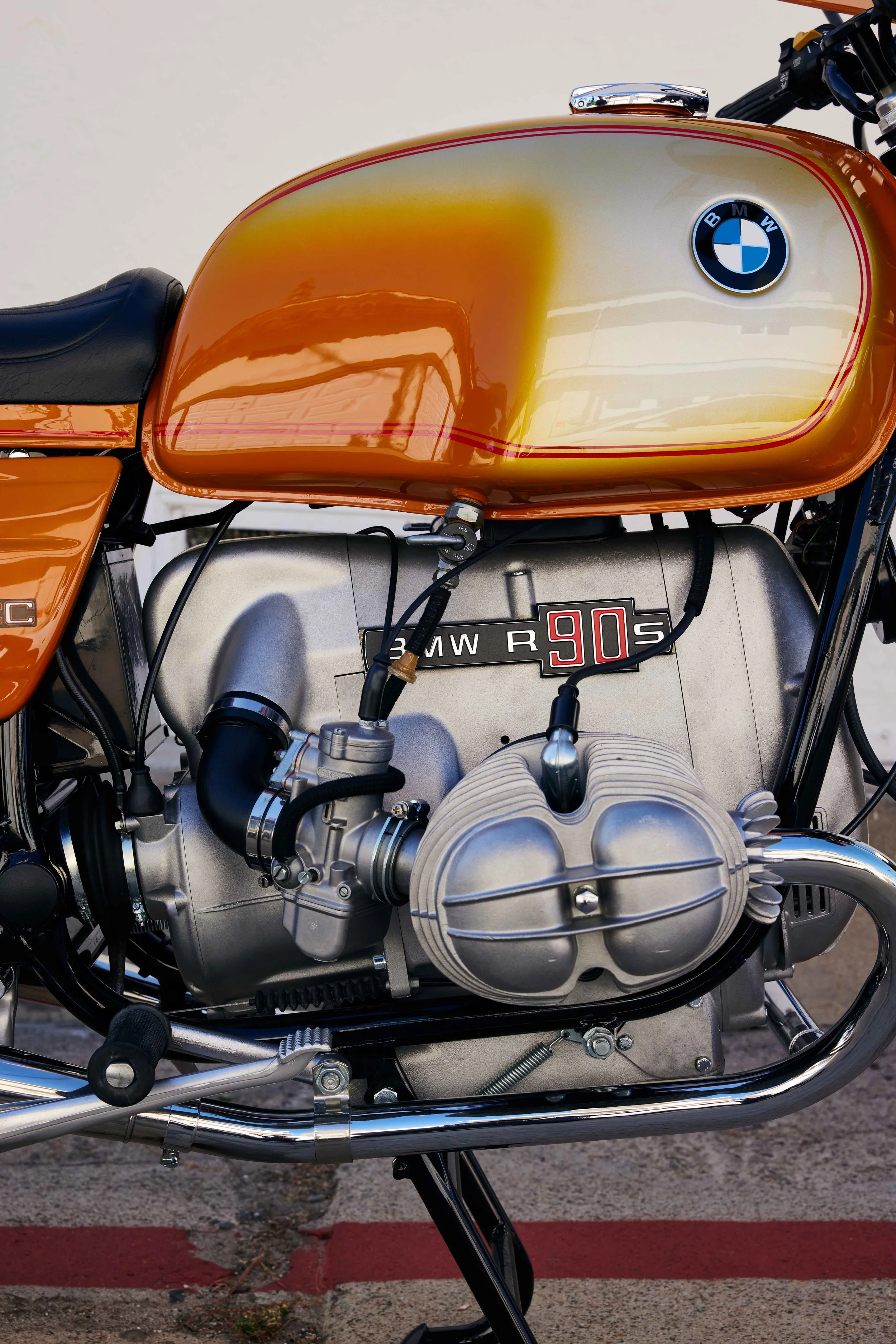

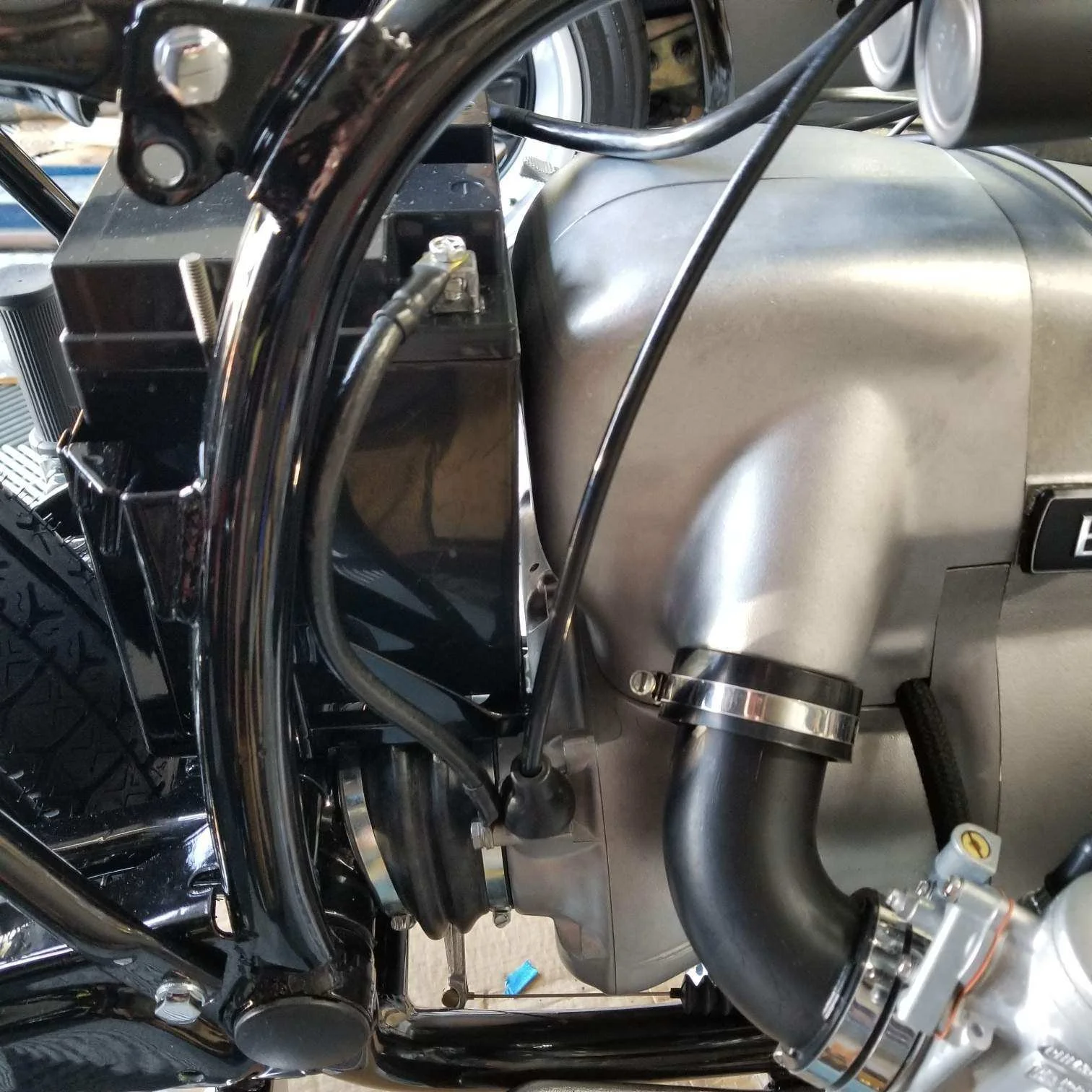

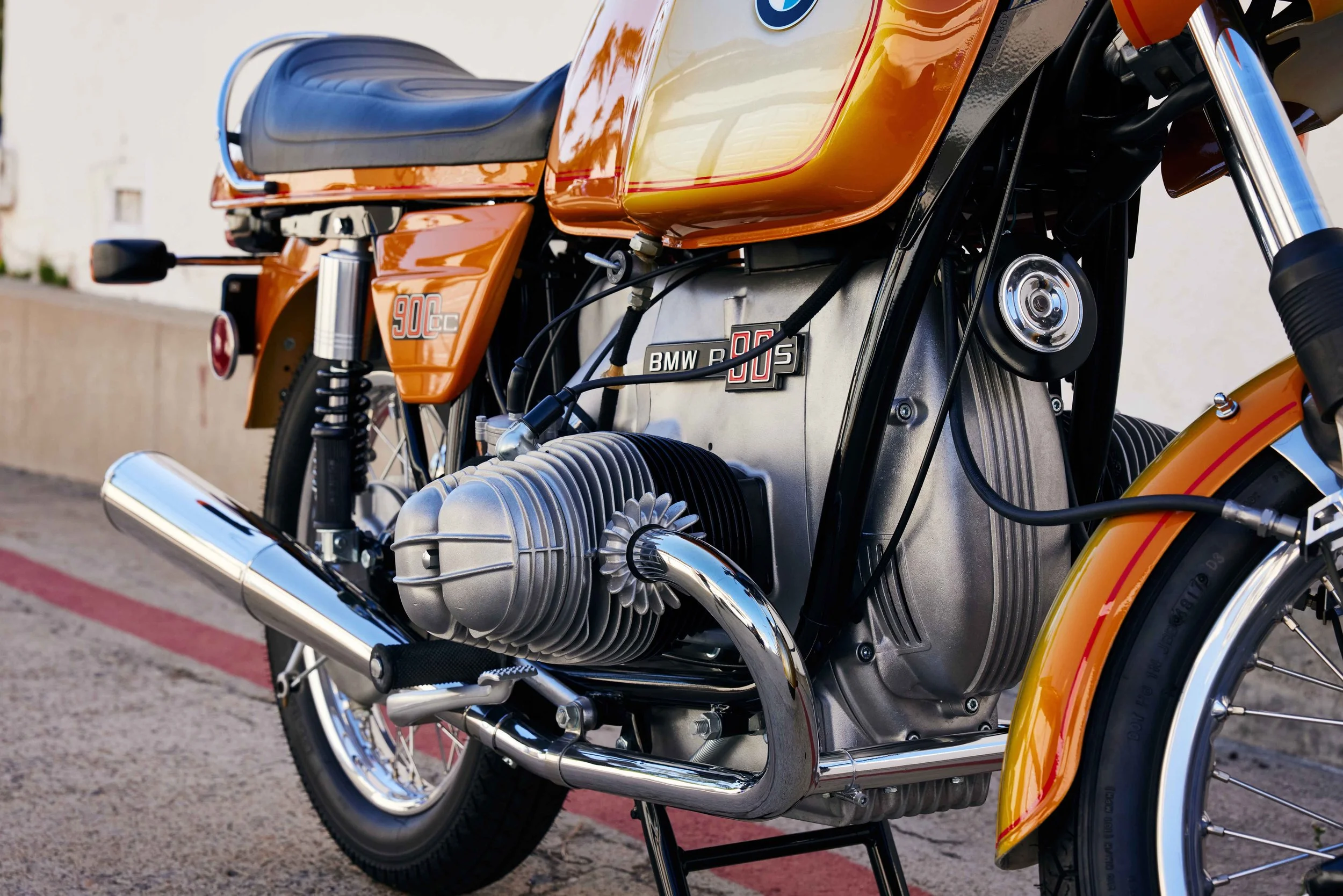

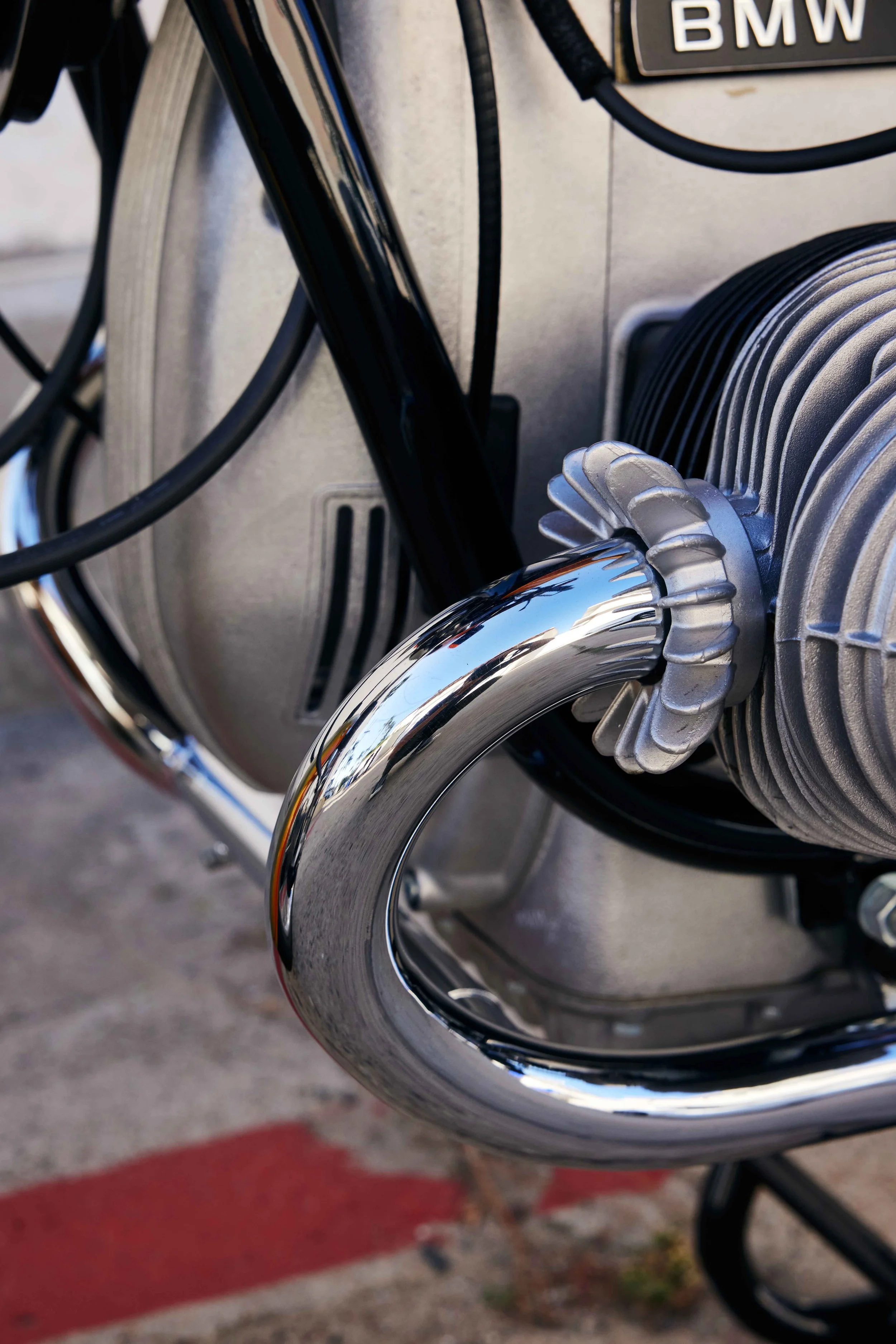

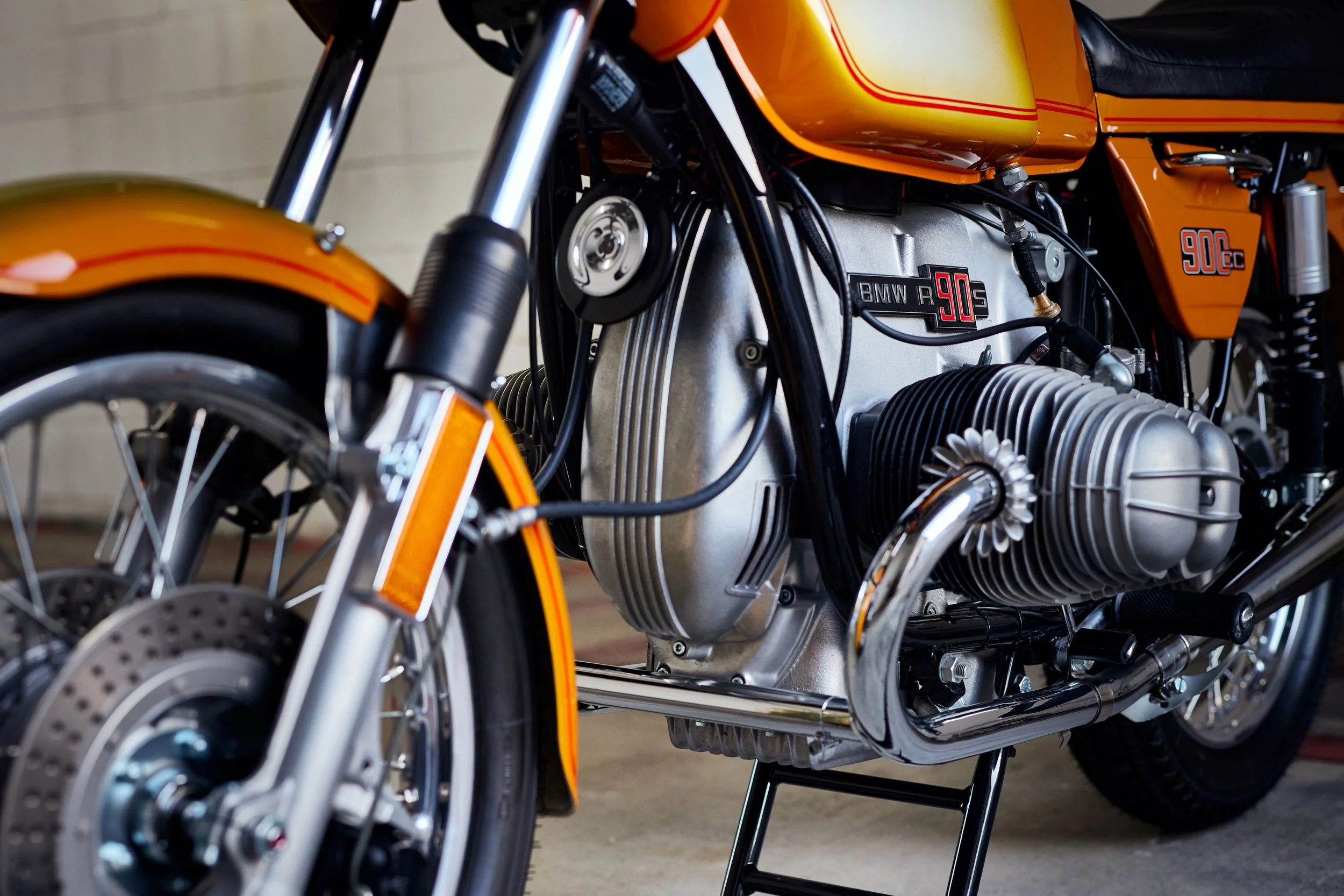

The 898cc opposed twin was rated at 67 horsepower when new and breathes through a pair of rebuilt Dell’Orto PHM 38mm carburetors as well as a chrome dual exhaust system with a crossover pipe and Keihan stainless-steel mufflers. An overhaul of the engine during the refurbishment included:
Bored cylinders to their first oversize
Installed Wossner high-performance pistons and rings
Balanced rotating assemblies
Rebuilt cylinder heads with Kibblewhite valves and performed a three-angle grind
Replaced rod, crankshaft main, and crankshaft front roller bearings
Replaced timing chain
Replaced valve guides and springs
