MOTO GUZZI LEMANS 1100cc

MOTO GUZZI LEMANS 1
 1100SPORT CUSTOM


THIS MOTORCYCLE'S STORY
—By Chris Lesser

Lets start with the incredible custom paint-job comes courtesy of Cycle Garden. The tank has original style lettering and logo plus the matching personalized fairing.

The motor was changed out to a 1995 1100 sport motor, fitted to the lemans 1, 5 speed gearbox, in building the wiring harness the original Marelli ignition module was used, timed off of the flywheel. The stock airbox was replaced with K&N pod filters and some serious re-jetting. LaFranconi pipes complete the package.


The frame and wheels were treated with the highest quality powder-coating and all new bearings before reassembly. Side covers were left off and the bike was fitted with a handmade custom battery box and reinforced battery tray.

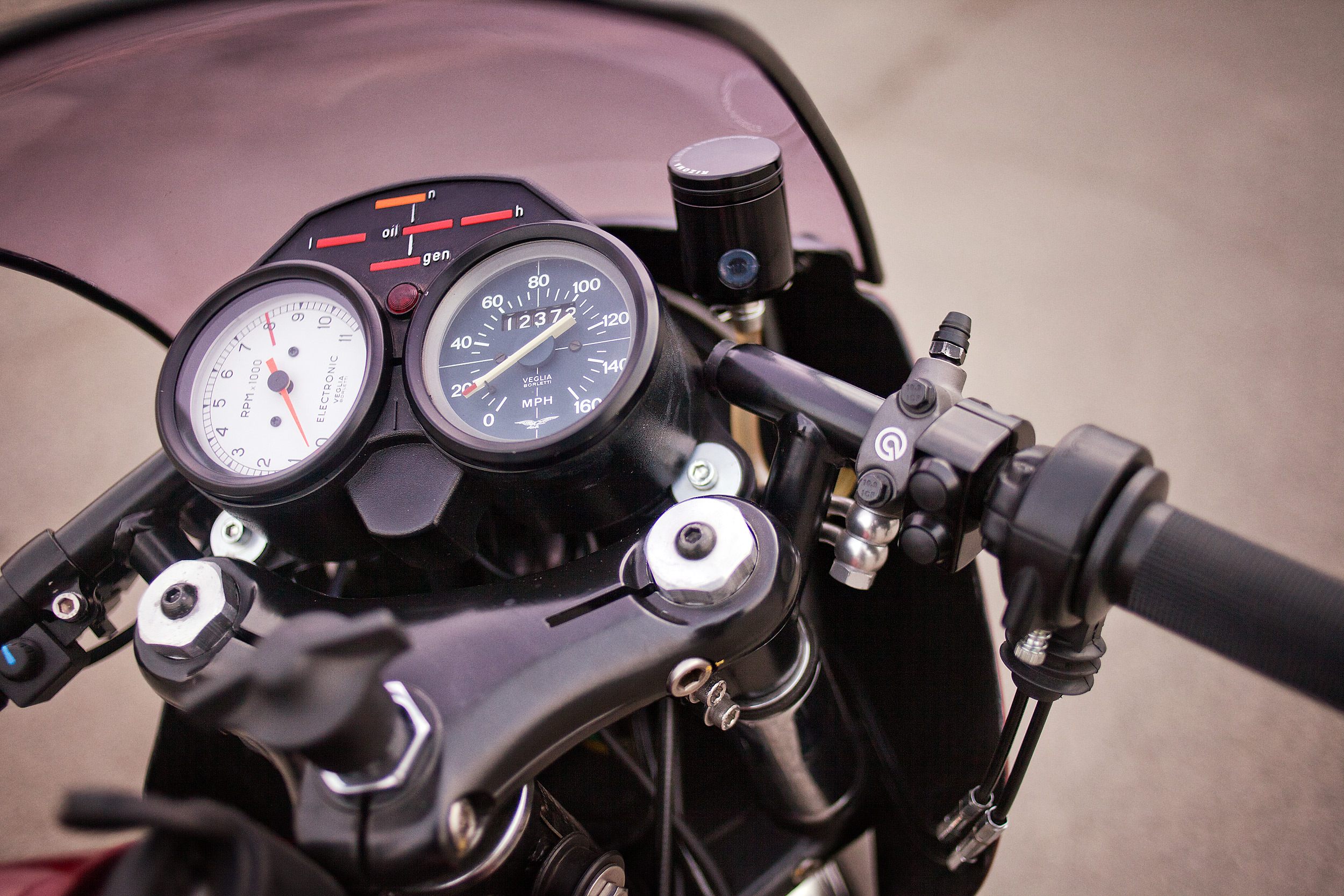

Minimalist switchgear with dual Motogadget momentary switches control all electronics. The upper-right switch is wired through a double-throw relay for high-/low-beam operation; the lower-right switch activates the starter. The upper-left switch flashes the headlights; the lower-left button works the twin high-decibel horns. Tomaselli natural black rubber grips complete the cockpit.

The front fender comes from a stock V7 Sport and is fitted with a custom handmade brackets; stock V7 Sport fender in the rear. Bike is finished with a classic Moto Guzzi S-3 seat with stock standard flip-up feature, and shod with Avon RoadRider tires.

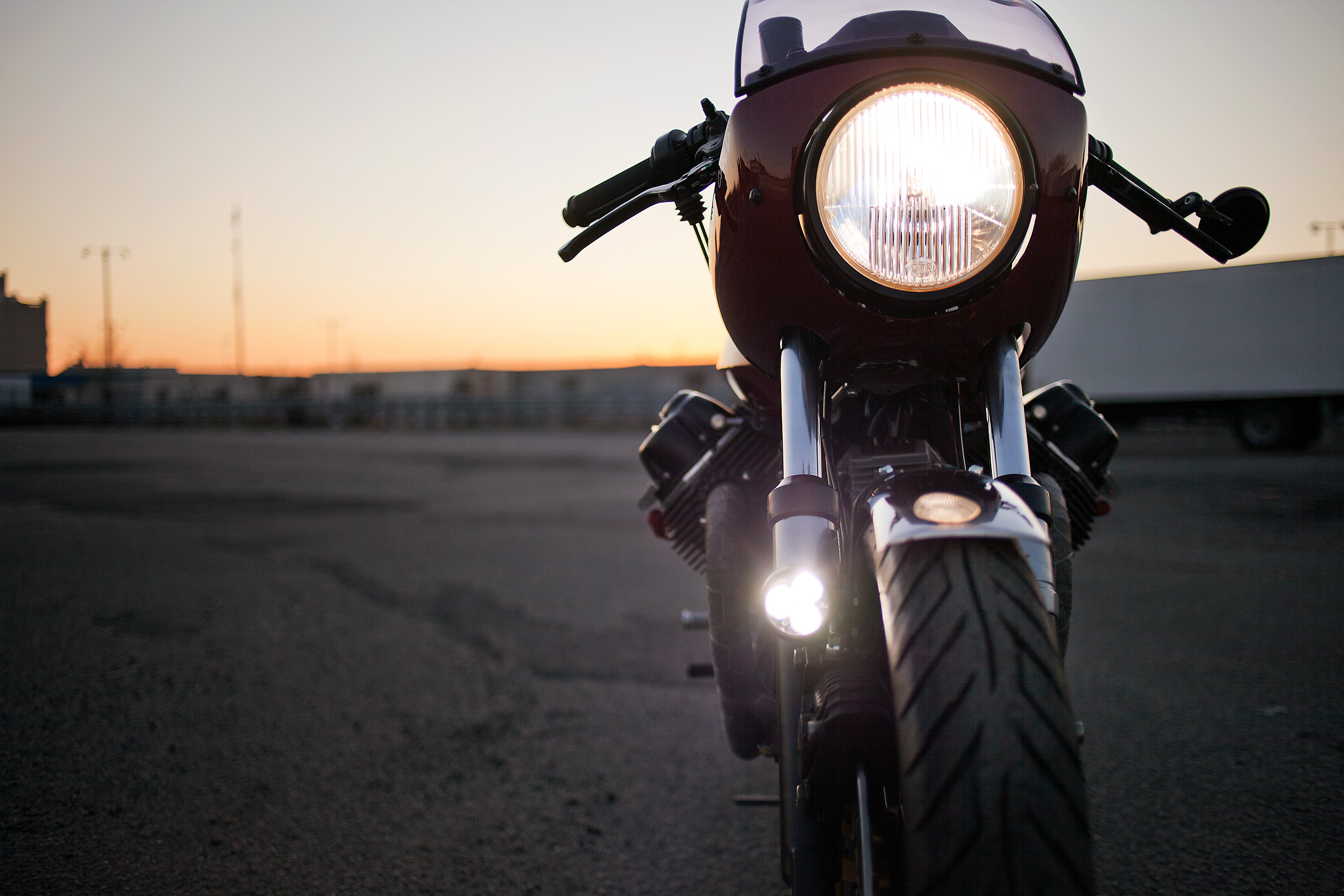

Finishing touches include a custom fish-net safety wire wrap on headers and a Clearwater asymmetrical LED driving light.





Braking duties are handled by new Brembo calipers all around. Floating 300mm dual rotors up front with stainless Spiegler brake lines actuated by a Brembo RCS radial master cylinder. The matching custom clutch perch with matching breakaway clutch lever has been adapted to work with an original Moto Guzzi clutch cable.




MOTO GUZZI LEMANS 1 DETAILS

  • Cycle Garden custom paint job

  • 1995 1100 sport motor

  • K&N Pod filters

  • 5 Speed gearbox

  • Marelli ignition

  • LaFranconi exhaust

  • Bermuda brakes

  • Floating 300mm front rotors

  • Spiegler brake lines

  • Brembo RCS master cylinder

  • Moto Guzzi S-3 seat

  • Motogadget momentary switches

  • Custom battery box

  • Reinforced battery tray

  • V7 Sport fenders

  • Avon RoadRider tires

  • Tomaselli natural black rubber grips

  • Custom fish-net safety wire wrap on headers

  • Clearwater asymmetrical LED driving light

NOT PICTURED

  • 41mm Keihan flat slide carbs

  • 40mm Conti exhaust



PHOTOS BY: RYAN HANDT
